The VR-4HD is a complete HD studio in a compact and portable package that replaces several different pieces of complex A/ V equipment. Designed with single-person operation in mind, the VR-4HD enables easy switching and mixing of sound and video using advanced video and audio Digital Signal Processing (DSP) along with dedicated hardware controls faders, buttons and touch screen interface. It beautifully integrates a digital audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming interface into a stand-alone device.
The VR-4HD features professional quality broadcast controls and switches ensuring more accurate and faster operation than interfaces based on a computer style mouse and keyboard. The ability to simultaneously switch video with the push of a button and adjust audio with the push of a fader is invaluable and puts all essential features at the operator's fingertips. The built-in multi-view screen is also a touch screen interface for accessing set-up parameters, making it extremely easy to adjust picture-in-picture settings by dragging the inset window onto the screen.
YESTERDAY'S VIDEO SOURCES
The VR-4HD has three dedicated HDMI input connectors compatible with a variety of equipment and support 1080p/1080i/720p video resolution. The fourth input includes a scaler to support both video and computer resolutions and also supports analog RGB and component input so older devices can be used as sources without the need for external conversion equipment.
Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.
COMPOSITING EFFECTS
The VR-4HD includes DSK (Downstream Keying), Picture-in-Picture (PnP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.
The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed.The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green) for compositing two videos in one screen using Picture-in-Picture, or for using the split function - ideal for seminars and presentations.
Features:
- All-in-one portable production solution
- Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
- 6 input, 4-Channel Video Switcher
- Supports HDMI, RGB/Component, and Composite Video Inputs Up to 1080p
- Built-in Scaler via CH4
- 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
- Embedding and de-embedding of audio with delay settings
- Auto mixing and Echo Canceling function
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Built-in touch quad-input multi-viewer with audio metering
- External Multi-View Output through HDMI
- HDCP Support
- USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loop-back Feature
- Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
- Tally, GPIO connections
- HDCP Compliant
Specifications:
- VIDEO
- Processing: 4:2:2 (Y/Pb/Pr), 8-bit
- Input Connectors: INPUT 1-3: HDMI Type A (19 pins) x 3 HDCP Supported
- INPUT 4: HDMI Type A (19 pins) x 1 HDCP Supported
- RGB/COMPONENT (Mini D-sub 15-pin type) x 1
- COMPOSITE (RCA phono type) x 1
- INPUT 4: HDMI , RGB/COMPONENT or COMPOSITE selected.
- Output Connectors: MAIN OUT: HDMI Type A (19 pins) x 1 HDCP Supported
- RGB/COMPONENT (Mini D-sub 15-pin type) x 1
- PREVIEW OUT: HDMI Type A (19 pins) x 1 HDCP Supported
- USB3.0: USB B type x 1
- Input formats: HDMI INPUT 1-3: 720/59.94p, 720/50p (SYSTEM FORMAT: 720p)
- 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p (SYSTEM FORMAT: 1080i, 1080p)
- INPUT 4: HDMI, RGB/COMPONENT:
- 480/59.94i, 576/50i, 480/59.94p, 576/50p
- 720/59.94p, 720/50p, 1080/59.94i, 1080/50i
- 1080/59.94p, 1080/50p
- VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
- WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
- FWXGA (1366 x 768/60 Hz), SXGA (1400 x 1050/60 Hz)
- UXGA (1600 x 1200/60 Hz) , WUXGA (1920 x 1200/60 Hz)
- COMPOSITE: 480/59.94i, 576/50i
- Output formats: MAIN OUT (HDMI, RGB/COMPONENT): 480/59.94i, 576/50i, 480/59.94p, 576/50p
- 720/59.94p, 720/50p, 1080/59.94i, 1080/50i
- 1080/59.94p, 1080/50p
- VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
- WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
- FWXGA (1366 x 768/60 Hz), SXGA (1400 x 1050/60 Hz)
- UXGA (1600 x 1200/60 Hz) , WUXGA (1920 x 1200/60 Hz)
- PREVIEW OUT: 720/59.94p, 720/50p (SYSTEM FORMAT: 720p)
- USB3.0: 720/29.97p, 720/25p (SYSTEM FORMAT: 720p)
- Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
- Effects: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE (8 types)
- Composition: PnP, SPLIT, QUAD, KEY (Luminance Key, Chroma Key)
AUDIO - Audio Processing Sampling rate: 24 bits/48 kHz Audio formats HDMI: Linear PCM, 24 bits/48 kHz, 2 ch
- USB: Linear PCM, 16 bits/48 kHz, 2 ch Input Connectors AUDIO IN 1-4 (XLR/TRS combo type, phantom power)
- AUDIO IN 5-6 (RCA phono type)
- AUDIO IN 7/8 (Stereo miniature type)
- USB B type (stereo) Phantom Power DC 48 V (unloaded maximum), 10 mA (maximum load) * Current value per channel Output Connectors AUDIO OUT: L, R (XLR type) L, R (RCA phono type)
- AUX OUT: L, R (RCA phono type)
- USB: USB B type (stereo)
- PHONES: Stereo miniature type Signal Level and Impedance XLR/TRS combo type
- Input Signal Level : -60-- 4 dBu (Maximum: 22 dBu)
- Input Impedance : 10 k ohms (GAIN 0--23 dB), 5 k ohms (GAIN 24--64 dB) RCA phono type
- Input Signal Level : -10 dBu (Maximum: 8 dBu)
- Input Impedance : 15 k ohms
- Output Signal Level : -10 dBu (Maximum: 8 dBu)
- Output Impedance : 1 k ohm XLR type
- Output Signal Level : 4 dBu (Maximum: 22 dBu)
- Output Impedance : 600 ohms
- Miniature type
- Input Signal Level : -15 dBu (Maximum: 3 dBu)
- Input Impedance : 15 k ohms
- Headphones
- Output Signal Level : 75 mW 75 mW
- Output Impedance : 32 ohms
- Audio Effects: Auto Mixing, Echo Cancel, EQ, Delay, Compressor, High Pass Filter, Gate, Reverb, Multi-Band Compressor, Limiter
Description
Ultra-compact audio/video mixer with direct streaming encodersUltra-compact and filled with innovative Roland AV technologies, the VR-6HD is the ultimate all-in-one solution for everyday business livestreaming events.
Offering advanced features and versatile connectivity in a portable, go-everywhere format, the VR-6HD is ideal for corporate meetings, online sales presentations, worship services, and other professional streaming and video capture applications.
Video switching, audio mixing, and LAN/USB streaming encoders are integrated into a single streamlined unit, eliminating the hassle and frustration that comes with connecting multiple devices. And one operator can easily handle all production tasks with minimal study, thanks to the smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more
- Powerful live production automation with sequencing, macros, and scene memories
- Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
- Record streams directly to an SDXC card for archiving, editing, and distribution
- Six 1080p HDMI inputs with frame rate converters and scalers
- Support for cinema and broadcast frame rates
- Five-layer video effects engine
- Five total outputs: three HDMI, USB-C streaming, and a dedicated direct streaming output
- Six selectable output modes: Program, Sub-Program, Aux, Preview, Multi-View, and Still-View
- 28-channel digital audio mixer with advanced effects and processing
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images with alpha channel in the internal non-volatile memory
- Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
- Audio Player function with six trigger pads and onboard storage for 12 audio files
- Control six PTZ cameras with support for multiple brands and mixed protocols
- 4.3-inch touch screen with graphical menu
- Extensive device control with Bluetooth®, USB, RS-232, and LAN
- Remote control software available for iPad, macOS, and Windows*
- Wireless and wired camera tally support
High-Quality Presentations Made Easy
The powerful video capabilities in the VR-6HD make it simple to bring professional production values to business streaming productions. Connect multiple cameras and computers via HDMI for different views, and incorporate robotic PTZ cameras to change angles at the touch of a button. Quickly assign and switch among sources on the fly, including live HDMI inputs, presentation decks, still images, and video clips. You can also create custom feeds for live and online viewers by assigning composition layers to multiple busses.
Multiple HDMI Inputs
The VR-6HD supports HDMI—the most common video connector in the world—and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Integrated Playback of Stills and Video Clips
Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.
Layers and Keyers
Video effects and graphics are must-haves to bring polish and excitement to productions. The VR-6HD’s effects engine features five composition layers that can be assigned to the Program, Sub-Program, and Aux outs, so you’ll always keep audiences engaged. With up to two picture-in-picture windows and one downstream key layer with transparent PNG and external key support, you can manage any creative need. For example:
- Layers 1-2—Start with mixable live background video layers.
- Layers 3-4—Place two picture-in-picture layers or chroma/luminance key effects.
- Layer 5—Add a downstream keyer with support for fill and key inputs.
Assignable Video Outputs
The VR-6HD puts a high-end video matrix at your fingers with three HDMI outputs, a USB-C streaming output, and an ethernet streaming output. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card.
Professional-Class Digital Audio Mixing
The VR-6HD delivers world-class audio quality with 28 simultaneous channels and Roland’s acclaimed sound mixing features. Comprehensive EQ and dynamics processing is provided on every channel, complete with convenient preset libraries for achieving pro results instantly. Powerful problem-solving tools are on hand, including audio sync alignment, de-essing, noise suppression, and more. It’s also possible to play back stored audio during streams with quick touches on the panel.
Multi-Channel Audio Inputs and Bluetooth
The VR-6HD offers professional analog audio connectivity with six balanced XLR/TRS combination jacks, high-quality mic preamps, and phantom power. Stereo RCA inputs are available for audio players, electronic instruments, and other line-level devices, and you can mix the embedded digital audio from sources connected to the HDMI and USB inputs. And with onboard Bluetooth, it’s easy to stream wireless audio from any mobile device.
Powerful Mixing Tools
Set up direct control for your most important sound feeds with seven assignable faders. And when you have multiple presenters to deal with, engage Auto Mixing to lighten your load and ensure that the mix between microphones remains balanced. You can set specific inputs to take priority when someone starts to speak, and other audio levels are automatically reduced as needed.
A Mix for Each Audience
Two auxiliary audio busses let you set up unique mixes for a variety of applications. For example, you can feed a monitor system for presenters while livestreaming a specialized mix that’s independent of the in-person program. Versatile routing allows you to freely assign the mix and aux busses to the two stereo XLR outputs, RCA stereo output, USB and stream/record outs, or HDMI outputs.
Shape Your Sound
The VR-6HD combines the full power of the latest digital audio consoles with expansive Roland effects. Four-band EQs and dynamics processing are provided for every input and output, and high-quality reverb is available for music applications and special effects. You also get specialized tools to quickly handle audio issues, like automatic anti-feedback for stage mics and adaptive noise reduction to suppress background noise and hum.
Audio On Demand
With the VR-6HD’s unique Audio Player section and six assignable pads, it’s simple to enhance events with custom sounds. With a quick press, you can trigger sound effects, event announcements, countdowns for e-sports, or theme songs for presenters—the sky’s the limit.
Ethernet/USB Streaming and Onboard Recording
The VR-6HD’s advanced technology makes livestreaming to the most popular platforms smooth and worry-free. With direct streaming over ethernet, computer streaming over USB, and Adaptive Bitrate support, you can deliver high-quality presentations to any audience. And with simultaneous SDXC recording, it’s easy to capture presentations for archiving and distribution.
Secure and Reliable Streaming Over LAN
The VR-6HD’s powerful LAN streaming capabilities allow you to directly connect with Twitch, Facebook, and other platforms without the need for a computer. The Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues. An adjustable Safety Delay is also available, allowing you to confidently stream unscripted events and prevent offensive content from being broadcast.
Dual LAN Streaming Destinations
Reach a wider audience by broadcasting to two different livestream channels at once. You can also use a mobile phone with a 4G or 5G data plan as the primary streaming connection or a redundant backup.
USB-C Streaming Up to 60 FPS
Stream to any audience in Full HD to a computer via USB. The USB-C connection offers the same plug-and-play technology as webcams,* so you can begin streaming immediately with Zoom, Microsoft Teams, or any platform that can use a webcam as its source.
*USB video class (UVC) and USB audio class (UAC) compliant. YUY2 (uncompressed) and Motion JPEG (compressed) formats supported.
SDXC Card Recording
With the onboard recorder, you can easily record an event to an SDXC card and provide your client with an H.264 MP4 video file* for their editing and distribution needs. Stereo WAV audio can also be recorded independently for podcasts and other audio-driven media. It’s even possible to capture still images to internal memory from any video output bus and save them to the card for later use.
*The recording bitrate is the same as the livestream encoding bitrate.
Take Full Control of Your Productions
Thanks to its well-organized panel and intuitive workflow, even novice operators will feel comfortable using the VR-6HD. Hardware knobs, faders, and buttons offer direct control for essential functions, while the 4.3-inch touch display provides smooth access to deeper parameters and settings. Scene memory, macro, and sequencing features simplify operation even more, letting you pre-program complicated actions and fire them off with simple actions.
Fast Recall of Complex Compositions
Storing and recalling custom looks can be accomplished with just a few button presses. The 32 scene memories and advanced effects engine work together to provide seamless changes, including synchronizing the transition of all composition layers at the program output. The 100 macros go even deeper, allowing you to build and execute complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
Sequencing Magic
The VR-6HD’s sequencer makes scene memories and macros even more powerful, letting you perform perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Set up your cues ahead of time in the sequence list and trigger them in order for a stress-free production.
Automated Switching and Mixing
When there are many presenters, you need to follow the action and switch audio and video together. The automated video switching and audio mixing features in the VR-6HD make this complicated task simple, greatly easing your workload and creating a smooth experience for the audience.
PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple operators, provide enhanced broadcast-quality coverage, and can be placed in discreet locations thanks to their small size. The VR-6HD features integrated support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to six PTZ cameras simultaneously.
Deep Remote-Control Options
The VR-6HD supports extended workflows with dedicated software apps and a variety of remote devices.
- The free VR-6HD Remote app for iPad connects via Bluetooth, allowing you to wirelessly operate functions at events via a portable touch interface.*
- Use the free VR-6HD Remote Control Software to operate the switcher from a Mac or Windows computer.*
- Connect footswitches or expression pedals to execute over 100 different switcher commands.
- Trigger start/stop on select third-party recorders over HDMI.
- Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
- Seamlessly integrate with system installations via the RS-232 and TALLY/GPIO D-Sub connectors.
Specifications
[Video]
-Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
-Number of Video Channels
6 channels
-Video Input Formats
VIDEO IN 1--6
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 Frame Rate = 59.94 Hz, 60 Hz
*2 Frame Rate = 50 Hz
-Video Output Formats
VIDEO OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 Output Format = 720p
*2 Output Format = 1080i
*3 Output Format = 1080p
*4 Frame Rate = 59.94 Hz
*5 Frame Rate = 60 Hz
*6 Frame Rate = 29.97 Hz
*7 Frame Rate = 30 Hz
*8 Frame Rate = 50 Hz
*9 Frame Rate = 25 Hz
*10 Frame Rate = 23.98 Hz
*11 Frame Rate = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p､640 x 480/25p *6
1080/23.98p, 720/23.98p､640 x 480/23.98p *7
1080/24p, 720/24p､640 x 480/24p *8
* Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate(USB Out) = 59.94 Hz
*2 Frame Rate(USB Out) = 60 Hz
*3 Frame Rate(USB Out) = 29.97 Hz
*4 Frame Rate(USB Out) = 30 Hz
*5 Frame Rate(USB Out) = 50 Hz
*6 Frame Rate(USB Out) = 25 Hz
*7 Frame Rate(USB Out) = 23.98 Hz
*8 Frame Rate(USB Out) = 24 Hz
-Stream and Record formats
720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 Output Format = 720p
*2 Output Format = 1080p
*3 Frame Rate (Stream/Record) = 59.94 Hz
*4 Frame Rate (Stream/Record) = 60 Hz
*5 Frame Rate (Stream/Record) = 29.97 Hz
*6 Frame Rate (Stream/Record) = 30 Hz
*7 Frame Rate (Stream/Record) = 50 Hz
*8 Frame Rate (Stream/Record) = 25 Hz
*9 Frame Rate (Stream/Record) = 23.98 Hz
*10 Frame Rate (Stream/Record) = 24 Hz
File Format: MP4
Codec:
H.264, target bitrate up to 20,000 kbps
AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
File Format: WAV
Codec:
Linear PCM, 16 bits, 48 kHz, stereo
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.
-Video Player
File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080/60p
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.
-Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the SD Card and USB flash drive.
* PNG alpha channel supported.
-Video Effects
Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
[Audio]
-Audio Processing
Sample rate: 24 bits, 48 kHz
-Number of Audio Channels
28 channels
-Audio Formats
USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
VIDEO IN: Linear PCM, 24 bits, 48 kHz, 2 ch
VIDEO OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
-Audio Player
File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 16 tracks in the internal memory.
-Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
Others: Output fade, Test tone output
[Common Section]
-Recording Media
SDHC/SDXC card (sold separately)
USB flash drive (sold separately)
* SDXC card is required for video recording.
-Other Functions
Scene Memory (32 types)
Macro Control (100 types)
Sequencer Control (1000 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 6 units)
External Rec Control
[Connectors]
-Video Input Connectors
VIDEO IN 1--6: HDMI type A x 6
* HDCP Supported
* Multi-format Supported
-Video Output Connectors
VIDEO OUT 1--3: HDMI type A x 3
* HDCP Supported
USB STREAM: USB Type-C (TM)
-Audio Input Connectors
Analog:
AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 7/L, 8/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
VIDEO IN 1--6: HDMI type A x 6
-Audio Output Connectors
Analog:
AUDIO OUT 1/L, 2/R: XLR type
AUDIO OUT 3/L, 4/R: RCA phono type
PHONES: Stereo miniature phone type
Digital:
USB STREAM: USB Type-C (TM)
VIDEO OUT 1--3: HDMI type A x 3
-Other Connectors
USB HOST: USB A type (for USB flash drive)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming and Remote Control)
[Audio Input/Output Characteristics]
-Input Level
AUDIO IN 1--6: -64-- 4 dBu (Maximum: 24 dBu)
AUDIO IN 7/L, 8/R: -10 dBu (Maximum: 10 dBu)
-Input Impedance
AUDIO IN 1--6: 8.4 k ohms
AUDIO IN 7/L, 8/R: 10 k ohms
-Output Level
AUDIO OUT 1/L, 2/R (XLR): 4 dBu (Maximum: 24 dBu)
AUDIO OUT 3/L, 4/R (RCA): -10 dBu (Maximum: 10 dBu)
PHONES: 92 mW 92 mW (32 ohms)
-Output Impedance
AUDIO OUT 1/L, 2/R (XLR): 600 ohms
AUDIO OUT 3/L, 4/R (RCA): 1 k ohm
PHONES: 33 ohms
[Others]
-Bluetooth
Ver 5.0
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
-Display
Graphic Type, 4.3", Wide QVGA (480 x 272 dots), backlite LCD (Color/Touch screen)
-Power Supply
AC adaptor
-Current Draw
2.3 A
-Power Consumption
55 W
-Operation Temperature
0 to 40 degrees Celsius
32 to 104 degrees Fahrenheit
-Dimensions
370 (W) x 242 (D) x 100 (H) mm
14-5/8 (W) x 9-9/16 (D) x 3-15/16 (H) inches
-Weight (excluding AC adaptor)
3.4 kg
7 lbs 8 oz
-Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
-Options (sold separately)
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
* 0 dBu = 0.775 Vrms
Description
WP 20CT is is an intelligent 2x1 automatic wall−plate switcher transmitter over long−reach HDBaseT for 4K USB−C and HDMI video signals. WP 20CT offers an intelligent switching experience with built−in Maestro room control and the standard priority / last−connected switching function based on active video signal detection.
Features
- High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
- Simple and Powerful Maestro Room Control — Out–of–the–box configured room control for a typical meeting room setup, and intuitive user interface enables you to control your meeting room elements. Room devices are controlled, locally or remotely via HDBaseT, right out–of–the–box by an extensive range of triggers, including input/output connectivity and routing. By minimizing user intervention, Maestro room control saves meeting prep time and minimizes human error before presentations.
- Automatic Display Operation — Part of the out–of–the–box Maestro configured room automation. Meeting presentation is simplified by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
- BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device, if PD–2.0–capable, with up to 60 watts of power (with the use of an optional 20V power supply).
- Plug & Play Auto Switcher — Automatically plays the switched user device source signal on the connected display according to user–configured preferences, such as priority or last–connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
- HDMI™ Signal Switching — HDCP 2.3 compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures plug & play operation for HDMI source and display systems.
- Multi–channel Audio Switching — Up to 8 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Audio De–embedding — The digital audio signal passing–through to the output, is de–embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Reliable PoE (Power over Ethernet) Powering — Auto–senses the HDBaseT extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
- Cost–effective Maintenance and Management — Status LED indicators for Power, HDMI, and HDBT ports facilitate easy local maintenance and troubleshooting. Local device management using built–in web interface via the USB–C connection . Local firmware upgrade via USB–C and RS–232 connection tool ensure lasting, field–proven deployment.
- Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoC) connections
WP 20 is a high−performance, 4K, multi−format, wall−plate switcher and transmitter over extended−reach HDBaseT. Offering intelligent Maestro automation, with priority and last−connected switching options, it automatically switches and operates the room according to the selected switching scheme based on active video signal detection.
Overview
- Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
- High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing extended–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
- BYOD Plug & Play Auto Switcher — Automatically plays the switched user device source signal on the connected display according to user–configured preferences, such as priority or last–connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
- Simple Switching Operation — Local buttons or remotely connected contact–closure buttons for flexible user input selection and switching control.
- HDMI™ Signal Switching — HDCP compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures plug & play operation for HDMI source and display systems.
- Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Audio Embedding — An auto–detected analog stereo audio input, per user selection, is converted into a digital signal and embedded in the output HDMI signal, replacing the source HDMI audio input signal. This enables, for example, a presenter to temporarily override the playing source audio with speech description.
- Audio De–embedding — The digital audio signal passing–through to the output, is de–embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
- Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
- Cost–effective Maintenance — Status LED indicators for HDMI, VGA and HDBT ports facilitate easy local maintenance and troubleshooting. Remote IP–driven device management via built–in web pages and RS–232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field–proven deployment.
- Easy Installation — Compactly fits into standard US, EU and UK 2–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
Applications
- Podium–mounted switcher in lecture halls, training rooms, auditoriums and hospitality applications.
- Wall–mounted switcher within any AV distribution system.
- Multimedia and presentation source selection in various corporate applications.

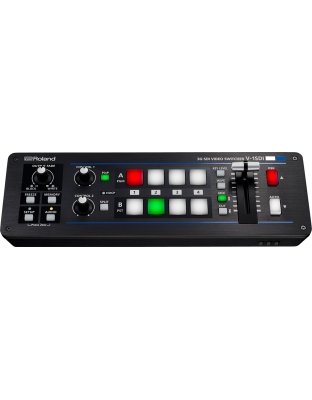

V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.
Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.
With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.
strong
Features:
- Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
- Easy to operate with hardware controls
- Compact size
- Supports up to Full HD 1080p
- 3 x 3G-SDI and 2 x HDMI inputs
- 2 x 3G-SDI and 1 x HDMI output
- Quad input multi-viewer with source labelling and audio metering
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Full 14 channel audio mixer included
- Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
Specifications:
- Video
- Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
- Input Connectors: SDI INPUT 1--3: BNC x 3 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M)
- HDMI INPUT 3--4: Type A (19 pins) x 2, HDCP Supported, INPUT 3: SDI or HDMI selected
- Output Connectors: SDI OUT PGM: BNC x 1, SDI OUT PVW: BNC x 1 (Conforms to SMPTE 424M (SMPTE 425M-AB), 292M), HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 (HDCP Supported)
AUDIO - Audio Processing: Sampling rate: 24 bits/48 kHz
- Audio Formats: SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M, HDMI: Linear PCM, 24 bits/48 kHz, 2ch
- Input Connectors -
- Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M, HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
- Analog: AUDIO IN (RCA phono type)
- MIC (Stereo mini type, plug-in power supported)
- Output Connectors -
- Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
- SDI OUT PVW: BNC x 1 SMPTE 299M
- HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
- Analog: AUDIO OUT (RCA phono type)
- PHONES (Stereo mini type)
- Input Level: AUDIO IN: -10 dBu (Maximum: 8 dBu), MIC: -41 -- -13 dBu (Maximum: -1 dBu)
- Input Impedance: AUDIO IN: 15 k ohms, MIC: 10 k ohms
- Output Level: AUDIO OUT: -10 dBu (Maximum: 8 dBu), PHONES: 92 mW 92 mW (32 ohms)
- Output Impedance: AUDIO OUT: 1 k ohm, PHONES: 10 ohms
General - Other Connectors: USB: B Type (for remote control from PC), RS-232: DB-9 type
- Other Functions: MEMORY (8 types), FREEZE (input video captured), OUTPUT FADE (Audio, Video: WHITE or BLACK)
- Power Supply: AC Adaptor
- Current Draw: 2.1 A
- Power Consumption: 25 W
- Operation Temperature: 0 to 40 degrees Celsius, 32 to 104 degrees Fahrenheit
- Dimensions (inches): 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H)
- Weight (excluding AC adaptor):2 lbs
Item Includes:
- Owner's manual
- AC adaptor
- Power cord
- Cord hook
Description
Welcome to Wireless Livestreaming
Break free from the complicated setup and tangle of cables typically needed to connect cameras, computers, and switchers for multi-camera livestreaming. With just an iPad and a few mobile phones, the revolutionary Roland AeroCaster system will have you wirelessly switching and streaming on your favorite platform in minutes.
AeroCaster makes it easy and affordable for anyone to create a wireless multi-camera setup with pro-level production quality. Leveraging the A/V power of the mobile devices that everyone carries, our breakthrough system opens up a new world of creative possibilities for any livestreaming application, from online talk shows and music performances to live commerce, remote education, and beyond.
- Powerful wireless production solution with hardware control surface/audio interface and full-featured iPad app
- Switch up to four wireless devices simultaneously, plus the camera on the host iPad
- Supports wireless camera connections from up to four supported iOS and Android smartphones and tablets
- Wirelessly share screens from computers and mobile devices via the Google Chrome web browser
- Switch between cameras, media, and scenes with a variety of transition effects
- Save and recall 30 scenes with titles, graphics, and picture-in-picture windows
- Media pool for integrating video, audio, photos, and graphics stored on your iPad
- Stream directly to YouTube, Facebook Live, Twitch, and custom RTMP channels over Wi-Fi or 4G/5G cellular networks
- Intuitive hardware control surface and audio interface with two XLR inputs, 3.5 mm stereo input, and headphones and monitor outputs
The Swiftest, Simplest Switcher Setup
AeroCaster is a super-powerful A/V switching system that’s incredibly versatile and easy to configure. In almost no time, you’ll be streaming multiple cameras and high-quality audio to YouTube, Facebook, Twitch, and custom RTMP channels over a Wi-Fi or 4G/5G cellular network.
The AeroCaster system consists of the AeroCaster LIVE app for iPad, the AeroCaster VRC-01 hardware control surface and audio interface, and the AeroCaster Camera app for iOS and Android mobile devices. BYOD screen sharing from computers and mobile devices is also supported.
Connect with Your Favorite Streaming Platform
AeroCaster provides an easy wireless connection to the leading streaming platforms. And your purchase of the system gives you full access to all AeroCaster features, with no subscription fee required.
Capture Video from Five Sources
In addition to remote video capture from four mobile devices, you can access a fifth live video source using the camera on the iPad.One-touch Changes with Scenes
Create up to 30 scene presets with text overlays, graphics (including transparent PNG files), picture-in-picture windows, or split-screen views.
Pro Video Effects Made Easy
Use cuts, cross-dissolves, and wipes for smooth, real-time transitions.
Access iPad Media Content
Create titles and play video clips, photos, and graphics from your iPad’s image library.
The Camera You Need Is in Your Pocket
You don’t always need expensive DSLRs and camcorders for everyday video productions. With the AeroCaster system, you can take full advantage of the amazing cameras in the latest phones and use them as high-quality inputs for your livestream.
Easy Video Capture with Wireless Freedom
With all-wireless connectivity, you can use readily available stationary mounts to put the phones in places where it’s difficult to use a traditional camera. And with affordable gimbal mounts, you’re able to capture stabilized mobile shots from as far as your wireless network will reach.
Fine-Tune All Your Cameras from One Place
Once mobile devices are connected to AeroCaster LIVE, you have remote access to all their advanced camera settings from within the app. Balance and match the image between different phone cameras and control settings like focus, zoom, exposure, white balance, and more.
Wireless Screen Sharing with Google Chrome
AeroCaster Live also provides a simple solution for screen sharing from computers and mobile devices. Presenters can easily connect via the Google Chrome browser over Wi-Fi, with no cables, video adaptors, or dongles needed
Combine Amazing Visuals with Great Sound
The AeroCaster hardware interface handles all your audio input and output needs with the power of a small broadcast mixer. Using simple and straightforward controls, one person can manage video switching and audio mixing all at once—with no prior production experience required.
Hear What Your Audience Hears
With the ability to monitor your audio mix through headphones or connected monitor speakers, you’ll know that your livestream viewers are hearing the content you’re delivering.
Stream with Top Audio Quality
The AeroCaster hardware features two combo inputs for connecting XLR microphones, electronic musical instruments, or a live sound console. And with a wide range of onboard effects, your talent will always sound their best. The headphones jack supports a feed from a headset mic or the mic on your earbuds for a third vocal source, and you can bring in additional audio from a mobile device or music player via the 3.5 mm stereo input.
Play Your Theme Music
From within the AeroCaster LIVE app, you have integrated access to media content stored on iCloud Drive. Play your opening theme to start the stream, trigger bumpers between breaks, or simply add some cool background music or sound effects whenever you like.*
Popular Applications
- Music PerformancesAeroCaster makes it easy for artists to connect with fans and build new ones with engaging multi-camera performance content. Grab shots from any angle and capture a high-quality stereo audio mix from the master console via the AeroCaster hardware.
- Online Talk ShowsWith AeroCaster, it’s never been simpler to set up and execute an online talk show or video podcast. Elevate your sound with pro broadcast mics, switch cameras among different presenters with a touch, and use the powerful onboard graphics tools to identify them with lower thirds. And with screen sharing via Google Chrome, it’s no problem to integrate charts, videos, and other content into your show as needed.
- Live SellingEntice buyers and pump up profits by presenting your products with the production quality they deserve. Mount phones to capture the perfect hero shots and demonstration views, then switch between them live with quick screen touches. Or display studio product stills, videos, and more by accessing content in your iPad’s media library.
Specifications
Connecters
- MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
- LINE IN jack: Stereo miniature type
- MONITOR OUT jack: RCA phono type
- PHONES/HEADSET jack: Stereo miniature type
- DC IN 5V port: USB Type-C (R)
- DEVICE port: USB Type-C (R)
Controller
- MIC 1 LEVEL fader
- MIC 2 LEVEL fader
- LINE IN LEVEL fader
- MAIN LEVEL fader
- MIC 1 COMP/LIMITER knob
- MIC 2 COMP/LIMITER knob
- MIC 1 GAIN knob
- MIC 2 GAIN knob
- LOOP BACK knob
- HEADSET/ONBOARD MIC knob
- REVERB knob
- LIP SYNC DELAY knob
- PHONES/HEADSET knob
- MIC 1 48V switch
- MIC 2 48V switch
Indicator
- POWER
- DEVICE
- SIG/PEAK
Nominal Input Level
- MIC 1, 2 jacks: -64 to 4 dBu (Maximum input level: 24 dBu)
- LINE IN jacks: -10 dBu (Maximum input level: 10 dBu)
Input Impedance
- MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
- LINE IN jacks: 15 k ohms
Nominal Output Level
- MONITOR OUT jacks: -10 dBu (Maximum output level: 10 dBu)
- PHONES/HEADSET jack: 15 mW 15 mW (32 ohms load)
Output Impedance
- MONITOR OUT jacks: 1 k ohms
Audio Effects
- Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter
Power Supply
- USB AC adaptor (commercially available)
- * Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
- USB Bus power
Current Draw
- 700 mA (AC adaptor)
- 500 mA (USB bus power)
Operation Temperature
- 0 to 40 degrees Celsius
- 32 to 104 degrees Fahrenheit
Dimensions
- 220(W) x 166(D) x 60(H) mm
- 8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches
Weight (without cables)
- 600 g
- 1 lb 6 oz
Accessories
- Leaflet "Read Me First"
- USB Type-C to Lightning cable
- USB Type-C to USB Type-A cable
- Browser source
- Built-in camera (iPad).* 5 inputs in total* Satellite cameras can be used with AeroCaster Camera or Web browser.* Need to install the “AeroCaster Camera” App on your iPhone and Android Phone.* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.* Codec:H.264 Bitrate:Up to 20Mbps
Video Processing
- RGB 4:4:4, 8-bit
- 1080/60p* Depends on iPad internal processing* Video input will be converted automatically.
Input Formats
- Up to 1080/30p* Automatically adjusts resolution and frame rate according to network bandwidth.
Output Formats
- Up to 1080/60p* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter.
Still image and video and audio playback
- Up to 100.* Use still images and videos saved in the iPad.* File format conforms to iOS Photo Library.* PNG alpha channel supported.* Support mp4(aac), m4a(aac), mp3, wav as audio source.
Scene
- Up to 30.* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered.
Video Effects
- Transition: CUT, MIX (DISSOLVE), WIPE
- DSK (overlay): Text, Media
- Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function* PNG alpha channel composition supported
Audio Processing
- Sampling Rate: 24 bits, 48 kHz
Streaming Platform
- YouTube Live
- Facebook Live
- Twitch* Custom RTMP supported
Recording
- Format : MP4 (H.264/AAC)
- Bitrate : 1Mbps〜10Mbps
Other Functions
- (Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)* Depends on smart phone or tablet
- 1
