Projector Mounts

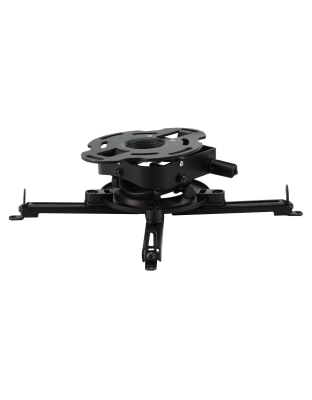

Peerless-AVs PRG Precision Gear Projector Mount is simplifying the way image alignment is done.
The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place it will hold its position even during projector maintenance. With Peerless-AV PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
- Specifications: Tilt: ±20°, Roll: ±10°, Swivel: 360° when mounted on extension column ±15° when flush mounted on ceilings
- Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs
- Spider® Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- Quick-release mechanism to easily service projector
- ”U” shaped pitch bracket allows for hassle free cable routing |Cable management allows cables to be routed through projector mount out of sight |Horizontal wrench access slots make flush mounting installations fast and easy
- Pre-assembled design reduces installation time
- Two adjustment knobs control projector image alignment
- Patent-pending precision gears provides exact projector image alignment
Peerless-AV’s Heavy Duty Universal Projector Mount is the perfect mounting solution for heavy, laser projectors up to 125lb. The Hook-and-Hang™ feature provides a large landing area when securing a projector to the mount. The tilt, roll and swivel features are all lockable to prevent even the smallest shift of the image. Six universal legs provide additional support for projectors with more than four mounting holes and are completely adjustable.
Peerless-AV’s Heavy Duty Projector Mount is designed to simplify the installation and alignment of heavy, large venue projectors.
The Hook-and-Hang™ feature provides a large landing area when securing a projector to the mount. The tilt, roll and swivel features are all lockable to prevent even the smallest shift to the image. Dedicated adaptor plates are made for each OEM projector manufacturer and are designed to place the center of gravity in the center of the mount, making adjustments effortless. Universal mounts are not recommended for these heavy projectors as they can be difficult to balance which can lead to projector sag over time.

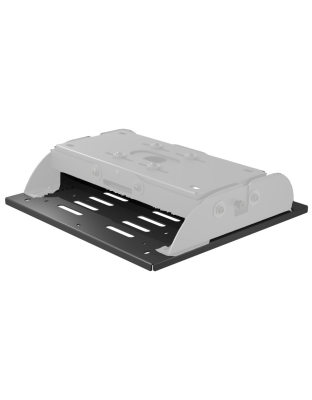

Required accessory when ceiling mounting 6820UL or 6820UL-L with the PJR250 mount
This adapter plate also works with the following NEC projector models: NP-PX1004UL-B, NP-PX1004UL-BK, NP-PX1004UL-W, NP-PX1004UL-WH, NP-PX803UL-B-18, NP-PX803UL-BK, NP-PX803UL-W, NP-PX803UL-WH, PX750CM, NC1000C, NC1000C-IMS, NC1100L-A, NC1201L-A, NC1201L-IMS, NC1700L-IMS, NP-PH1201QL, NP-PH1202HL, NP-PH1202HL1 and PH1000U projector models
The Projector Wall Arm offers the same adjustability as the ceiling mount while allowing the projector to be attached to the wall. This low-profile mount is designed with security, functionality, aesthetics, and ease of installation in mind. Compatible with PRG, PRS and PJF2 projector mounts (sold separately).
- Vector Pro™ and PRS mounts ordered separately
- Wood screws included for mounting to a single wood stud
- Attaches to PRS and PJF2 mounts with carriage bolt and Armor Lock™ security screw
- Can be mounted direct to concrete or a single metal stud (concrete anchors and metal stud fasteners sold separately)
- 14.25” reach to accommodate most projectors
Description
The Cathedral Ceiling Adaptor can be used with 1.5"-11.5 NPT extension columns (EXT, AEC models only) to securely mount and support a projector or flat panel display from an angled ceiling. This adaptor offers 95°/-5° of adjustment and includes a security slot for theft resistance. The ACC-CCP is a low-profile, secure solution to support nearly any projector or display in an angled ceiling application.
Features
- 95°/-5° of adjustment
- Compatible with 1.5"-11.5 NPT(38mm) extension columns
- Can be mounted directly to wood studs or concrete
- Includes a security slot for theft resistance
