Audio over IP

Description

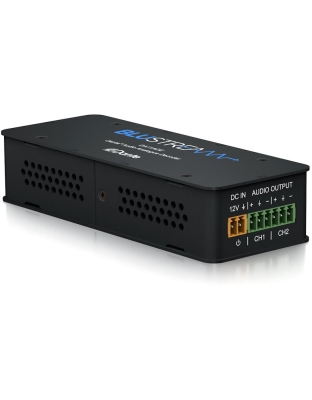

Blustream DA11ADE is a Dante® Audio Analog Decoder. It has been designed to decode a Dante® digital signal to unbalanced or balanced 2ch analog audio. The DA11ADE is a plug & play device that is powered using PoE (Power over Ethernet) from any PoE network switch. The DA11ADE also supports AES67 RTP audio transport.

Features

• Decodes a Dante® digital signal to unbalanced or balanced 2ch analog audio
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Danter Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch

Specifications

• Audio Input Connectors: 1x RJ45, female (100Mbps Dante® network)
• Audio Output Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analog audio)
• Casing Dimensions (L x W x H): 4.72 x 1.85 x 120mm x 1.02 in (47mm x 26mm)
• Shipping Weight: 0.44lbs 0.2kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Class 1 IEEE 802.3af POE PD

Item Includes

• 1xDA11ADE Audio Analog Decoder
• 1xQuick Reference Guide

Description

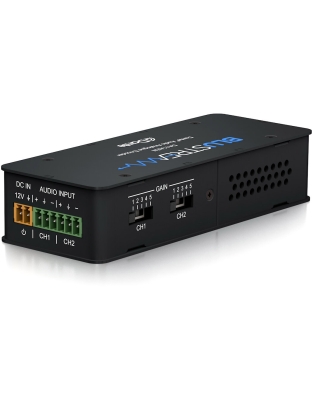

Blustream DA11AEN has been designed to encode unbalanced or balanced 2ch analog audio to Dante digital signal.

The DA11AEN allows any non-Dante audio source such as mixing consoles, amplifiers, computers and Blustream matrix products or distribution products to be connected as a source within a Dante network.

The DA11AEN is a plug & play device that is powered using PoE (Power over Ethernet) from any PoE network switch and supports AES67 RTP audio transport.

Features

• Encodes unbalanced or balanced 2ch analog audio to a Dante digital signal
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante device latency (supports 1, 2 or 5ms configurable using Dante Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE * PS121PH power supply sold separately

Specifications

• Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analog audio)
• Audio Output Connectors: 1 x RJ45, female (100Mbps Dante network)
• Casing Dimensions (L x W x H): 4.72 x 1.85 x 1.02"
• Shipping Weight: 0.44lb
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Power Supply: Class 1 IEEE 802.3af POE PD

Item Includes

• 1x DA11AEN
• 1x Quick Reference Guide

• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Inputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output — 2 Dante channels on an RJ–45 connector.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
• Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.

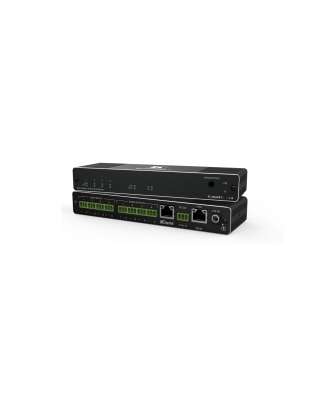

FC−404NETxl is a hybrid, analog and Dante, audio cross−connect mixer. Input audio, either analog lines/microphones or Dante audio over IP channels, are mixed and cross−connected to the analog audio output lines and/or Dante audio over IP output streams. The mixer accepts PoE via its network connection.

• High Performance Standard Mixer — Professional mixer, mixing any audio inputs to any outputs, including auto analog to digital audio format conversion, flexible input or cross–connect level and output gain adjustment. As a standard–compliant mixer, it connects to any market–available AES67–compliant Dante product.
• Hi–quality Sound Mixer — Features a fully flexible and preset signal management. Mix, route, and distribute any inputs and outputs in any audio format via simple click and connect. Select and toggle through 10 presets in the device’s embedded web pages’, or use API commands for a simple setup change with Kramer’s recommended room controller and adjustable level control.
• Professional, Open, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Supports AES67 standard for open IP communication and interop. In addition, FC–404NETxl maintains the quality of the original audio signal with selectable sampling rates.
• Flexible Audio Cross–Connection — Fully configurable inputs, the analog lines, dynamic or condenser microphones, and audio over IP Dante channels, are mixed, format–converted and distributed to any set of outputs, either analog lines or audio over IP Dante streams.
• Comprehensive Unit Control and Configuration Options — Remote IP–based, or local serial, control via user–friendly embedded web pages, Protocol 3000 API commands, touch screen, or other controllers. The device is managed by Kramer Network or Dante DDM management.
• Versatile Powering — Powered by PoE through the Dante port or by a mains power adapter.
• Cost–Effective Maintenance — LED indicators for audio signals and network connection status facilitate easy local maintenance and troubleshooting. Remote IP–driven device management and optional whole site management system via built in web pages and RS–232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field proven deployment.
• Easy Installation — Single cable connectivity for both Ethernet signal and power. Compact DemiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of two units in a 1U rack space with the recommended rack adapter.

Applications

• Enterprise boardrooms and advanced conference rooms
• Education lecture halls and auditoriums
• Governmental large facilities with advanced audio mixing apps
• Any application with hybrid analog and digital audio mixing and cross–connection needs

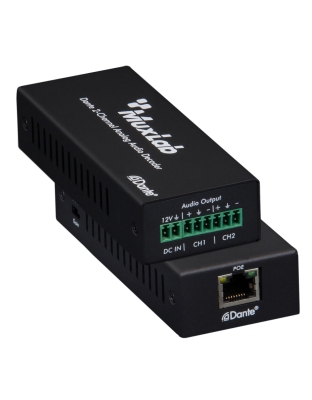

The Dante 2-Channel Analog Audio Decoder (Model: 500552) is designed to receive digital audio signals from Dante-compliant equipment, then decode and output them as analog audio signals. The unit supports balanced or unbalanced audio output and 3 level gain adjustment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

Applications:
Conference Rooms
Education
Retail Stores
Hotels
Restaurants
Conference Center
Hospitals

Features:

• Interface Dante audio equipment to analog audio equipment
• Supports balanced/unbalanced 2chanalogue audio output
• Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
• Audio output supports 3-level gain adjustment: 18dBu, 0dBu (default) and-10dBV
• Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
• Supports AES67 RTP audio transport

Specifications:

• Technical
• Video Network Bandwidth: 328 Foot
• Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
• Transmission Distance: 328 Foot (CAT6/6A)
• Control Method: Dante Controller

  Connection
• Inputs: 1 x DANTE [RJ45 connector, PoE], 1 x PWR [2-pin phoenix, 3.81mm]
• Outputs: 1x AUD [6-pin phoenix, 3.81mm]

  Mechanical
• Housing: Metal Enclosure
• Color: Black
• Dimensions (WxDxH): 7 x 3.35 x 2.17"
• Weight: .66lb
• Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
• Power Consumption: 1.32W
• Operation Temperature: 32 - 104°F
• Storage Temperature: -4 - 140°F
• Relative Humidity: 20 - 90% RH (no condensation)

Item Includes:

• 1x MuxLab 500552 Dante 2-Channel Analog Audio Decoder - up to 328 Foot via CAT6/6A

Warranty:

• 2 years

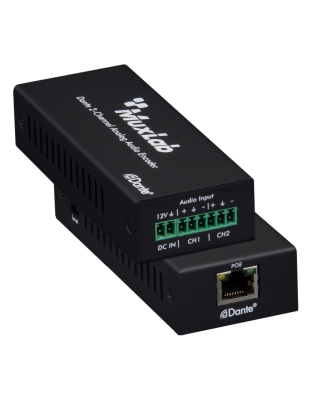

This Dante 2-Channel Analog Audio Encoder (model: 500551) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two-channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

Applications:
Conference Rooms
Education
Retail Stores
Hotels
Restaurants
Conference Center
Hospitals

Features:

• Interface analog audio equipment to Dante audio equipment
• Supports balanced/unbalanced 2chanalogue audio input
• Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)
• Audio input supports 3-level gain adjustment: 18dBu, 0dBu (default) and-10dBV
• Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
• Supports AES67 RTP audio transport

Specifications:

• Technical
• Video Network Bandwidth: 328 Foot
• Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
• Transmission Distance: 328 Foot (CAT6/6A)
• Control Method: Dante Controller

  Connection
• Inputs: 1 x PWR [2-pin phoenix, 3.81mm], 1 x AUD [6-pin phoenix, 3.81mm]
• Outputs: 1 x DANTE [RJ45 connector, POE]

  Mechanical
• Housing: Metal Enclosure
• Color: Black
• Dimensions (WxDxH): 7 x 3.35 x 2.17"
• Weight: .66lb
• Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
• Power Consumption: 1.2W
• Operation Temperature: 32 - 104°F
• Storage Temperature: -4 - 140°F
• Relative Humidity: 20 - 90% RH (no condensation)

Item Includes:

• 1x MuxLab 500551 Dante 2-Channel Analog Audio Encoder - up to 328 Foot via CAT6/6A

Warranty:

• 2 years

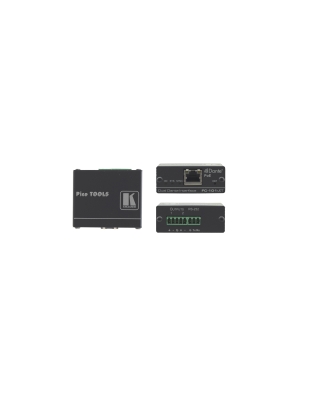

FC−101Net is a compact 2−channel Dante™ decoder with 2 balanced mono audio outputs. It enables connecting non−Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. FC−101Net is powered over Ethernet from any standard PoE providing network switch.

• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Input — 2 Dante channels on an RJ–45 connector.
• Outputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.

Description

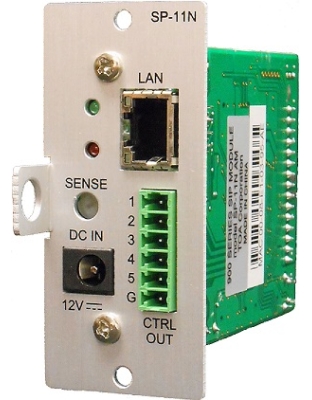

The SP-11N is a VoIP phone paging module supported SIP (Session Initiation Protocol) with Auto-answer function. It can be connected to an IP network and directly registered as one SIP phone station on various SIP server management software. It also has VOX and mute functions designed for use with TOA’s 9000M2, 900, 700 and BG-2000 series amplifiers.

Specifications

Vaddio's 999-85820-000 EasyIP CeilingMIC D complements most interiors with its sleek design featuring smooth lines and quality acoustical fabric wrap. These overhead microphones are a great alternative to a custom installation or table microphones. Ceiling-mounted microphones create a clean look in your conference room or meeting space and eliminate table clutter. Vaddio's EasyIP CeilingMIC D is ideal for drop tile ceilings and open-ceiling environments as well.

With full 360-degree pickup coverage, one EasyIP CeilingMIC D provides excellent coverage for an average size meeting room table. Ensure clear coverage of all meeting participants in larger spaces with multiple ceiling microphones - the number of microphones is only limited by the availability of network switch ports. Centrally manage microphone routing and system configuration with free Dante Controller software.

Each EasyIP CeilingMIC D unit delivers the performance of three microphone elements built into a single pendant hanging enclosure. Each unidirectional cardioid microphone element is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering and automatic gain control (AGC). The DSP in the interface box receives its AEC reference from the far end and applies it to individual mic elements, so conference calls are crystal-clear on both ends of the conversation. Configure and fine-tune the DSP easily with Vaddio's desktop configuration tool.

With its plug-and-play design, installation is as simple as connecting a Cat-5e cable between the network switch PoE port and the EasyIP CeilingMIC D microphone receiver. Power, control and audio are all incorporated into the single cable.

The CeilingMIC pendant includes a 3 ft. (0.9 meters) adjustable drop cable and with a standard RJ45 jack connection, the pendant can be extended to a total length of 15 ft. (4.6 meters) from the interface box.

Features:

• MADE IN THE USA!
• Dante networked audio signal for easy system routing
• Three-element array head for 360-degree coverage
• Design allows for custom ceiling drop cable length and easy installation
• Built-in digital signal processor (DSP)

Specifications:

• Frequency Response: 100 Hz to 16 KHz
• THD + Noise: < 0.02%
• Dynamic Range: >90 dB
• Operating/Storage Temperature: 32°F to 104°F (0°C to 40°C)
• Operating/Storage Humidity: 10% to 80% (non-condensing)
• Maximum Cabling Distance Drop cAble: 15 ft (4.6 m)
• Interface Box To Host Device: 328 ft (100 m)
• Interface Box Dimensions: Length including flange: 10.25 in x 4.6 in x 2 in.
• Microphone body Dimensions: 2.5 in. (6.3 cm)

Item Includes:

• 1x EasyIP CeilingMIC D microphone pendant and interface box
• 1x Quick Start Guide
• 1x 3 ft. (0.9 m) White or Black Cat5e Cable
• 1x Ceiling Mounting Hardware

Warranty:

• 3 years

The Blustream DA44AU is a four input / four output Dante® digital audio converter. The DA44AU allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix / distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante® signal back to an analog audio signal. The DA44AU supports both balanced and unbalanced audio as well as microphone line level inputs inc. 48V phantom power. The DA44AU supports AES67 RTP audio transport.

Features:

• Features 4 x analog audio inputs that are converted to a Dante® compatible signal
• Features conversion of 4x Dante® signals to analog audio outputs
• Analog audio inputs support both balanced and unbalanced audio + MIC line level signals
• MIC line level supports 48V phantom power
• Supports 44.1, 48 & 96kHz sample rates @ 24-bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Independent input gain / output volume settings per channel
• Supports AES67 RTP audio transport

Specifications

• Audio Input Connectors: 12-PIN Phoenix connector (4ch balanced / unbalanced analog audio / MIC)
• Audio Output Connectors: 2 x RJ45, female (1Gb Dante® network), 12-PIN Phoenix connector (4ch balanced /
• unbalanced analog audio / MIC)
• Casing Dimensions (W x H x D): 120mm x 23mm x 34m without feet
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC

Included

• 1x DA44AU
• 1x 12V/1A DC Power Supply
• 1x Mounting Kit
• 1x Quick Reference Guide

Overview

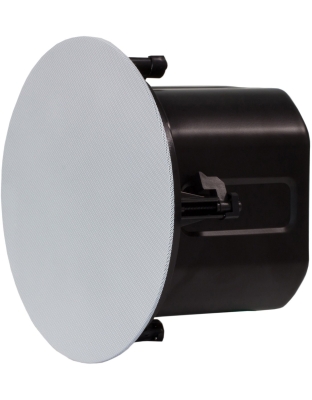

The MuxLab Dante Ceiling Speaker PoE, 40W (500221) is a high performance full band and easy installation speaker ideal for providing background music and vocal performance for a wide range of applications and installations. The speaker is designed with advanced linear sound source technology.

The MuxLab Dante Ceiling Speaker PoE, 40W comes with a 6.5" coaxial 40W loudspeaker driver that has excellent dispersion, wide bandwidth, and smooth frequency response which makes this the top choice for today's overhead commercial and residential applications. To achieve the distribution of power supply, audio signal transmission, and control functions the Dante Ceiling Speaker PoE, 40W uses only a network cable, making it a very economical option with great energy savings.

Applications

• Conference rooms
• Shopping center
• Houses of worship
• Hospitals
• Restaurants
• Education
• Airports
• Retail stores

Features

• Dante protocol
• Built-in power amplifier module
• Precise DSP matching
• Power Supply via PoE
• Free sound calibration software tool available

Specifications

• Frequency Response: 90Hz ~ 16KHz
• Audio Input: Dante Audio via Ethernet
• Peak Power: 40W
• Route Switching Control: Dante™ Controller Software
• Network Interface: RJ-45 x 1
• Driver Specifications: HF: 1" x 1, LF: 6.5" x 1 Coaxial unit
• Power Supply: PoE+ (IEEE 802.3AT/BT)
• Built-in Function: DSP/Dante/Amplifier
• DSP Function: Gain, Mute, 5-Band PEQ, Limiter
• Power Supply: Limiter PoE Network Switch
• Hanging Method: Built-in buckle
• Product Dimensions: Φ278 x 176mm
• n Hole Dimension: Φ246mm
• Depth of Opening: 240mm
• Unit Weight: 6.17Lbs (2.8kg)
• Shipping Weight: 8.0 lbs (3.6kg)
• Warranty: 2 years

Overview

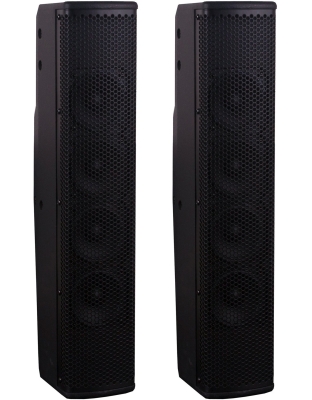

The MuxLab Dante 60W Column Speaker PoE (500220) is a speaker designed with advanced linear sound source technology, each speaker consists of (4) 3-inch ferrite bass drivers with 25mm voice coils. It meets the design requirements of linear sound sources and has broad horizontal directivity and narrow vertical directivity, sending the sound to the target area accurately, avoiding reflection from the ceiling and ground while increases the proportion of direct and reverberation sound to greatly improve speech clarity.

The MuxLab Dante 60W Column Speaker PoE is mainly used in speech sound reinforcement system, works as the main loudspeaker in a multifunctional small conference room, or the supplementary loudspeaker in the medium-sized conference room. Could be used in small music sound reinforcement systems with subwoofer loudspeakers, and can also be used with the latest Dolby surround sound systems as left or right surround, back surround, or ceiling surrounds sound box use.

It supports a variety of installation methods including a convenient U-shaped frame. The special U frame provides two modes: fixed angle and adjustable angle. In the adjustable mode, the adjustment up and down angle is 15 degrees. You can also use the universal NBT717M wall mount frame or a vertical and horizontal multi-angle frame to hoist the speakers.

The MuxLab Dante 60W Column Speaker PoE has a small and exquisite appearance, the cabinet is made of high-quality wood, which restores the original sound. The clean finish on the surface of the cabinet allows the speaker to adapt to different decorative styles. Free software calibration tool available to customize speaker sound settings. The MuxLab Dante 60W Column Speakers are sold in pairs.
