Master Clocks

Telephone, email, and live chat troubleshooting, diagnostic, and programming support for Dukane clock systems. Consult with a factory-certified technician with over a decade of experience working on Dukane communications systems.

Price is per incident, per hour. No other parts or materials are included. Photos are for illustrative purposes only.

About Dukane Wired Clock Systems

Dukane Communication Systems proposes a simple solution – get in sync! Dukane’s family of analog and digital clocks combined with programmable master clocks and other accessories makes keeping and controlling time easier. Dukane can provide turnkey systems including clocks and controllers to keep your facility running on the same schedule, day after day

By synchronizing the clocks within a facility, you ensure that all personnel inside have the same information. No matter the type of environment, things run more smoothly if the time is accurate and consistent.

Some applications, like elementary schools, require analog clocks. Others, like higher education, businesses, and healthcare facilities, prefer digital versions. Dukane offers both analog and digital models and Dukane has priced these clocks to be the most competitive available today.

To simplify installation, Dukane’s clock system components can use standard electrical backboxes rather than custom or proprietary versions. This means that Dukane's clocks can be installed into most existing wall openings.

With the flick of a dip switch, our analog clock can take on the personality of various other syncronous secondary clocks. All you need is our analog clock for all your replacement needs.

Clocks should be easy to find and easy to read, while fitting into their surroundings. Dukane's clocks are styled to be simple, clearly visible, and neutral to their environment. Architects and engineers will appreciate their adaptability.

Dukane offers unique scoreboard and timer capabilities when using the 24CC10 Controller with digital clocks. These can be useful when there is a need to time tests, keep score between teams, or even determine how long certain tasks take to complete.

Dukane's clock systems deliver the accuracy, choices, convenience, styling, and unique features that your facility is looking for, all at a price you can afford.

About Dukane Wireless Clock Systems

Dukane wireless clock solutions comprise a reliable master/slave cascading network that synchronizes clocks from a central on-site master controller. The master clock receives highly accurate time signals from an NTP or GPS source and relays timecodes to local slave clocks via wireless signals.

Each clock in the system is capable of receiving and transmitting the wireless signal which allows it to be used as a repeater while boosting the data stream and sending along the system. With this dual capability there is no limit to the number of clocks that can be installed throughout highrises, sprawling facilities, and small buildings alike.

Because the signal fans out and is repeated by a cascading number of devices, a single clock will typically receive its data from a number of different angles. This dramatically reduces the effect of obstructions, noise sources, or long distances on the reliability of the system. Furthermore, if an individual clock looses its signal, it will link to a nearby clock and automatically synchronize with that new source.

The cascading network also reduces system setup and installation costs, thanks to the relatively low signal strength that is necessary for it to function efficiently. This eliminates the expense and time required to obtain an FCC license.

The Dukane Model 24ZB20 and 24ZB40 Secondary Clocks provide a highly visible, even-intensity, long-life display of time in selectable formats. They can be operated in either 12- or 24-hour format, and at either Bright or Normal intensity levels. The time display on the secondary clock updates to the master clock time at one-minute intervals. These cost-effective digital clocks can be used in a wired time-keeping system or, with the addition of the optional ZigBee module 24ZBM2040, can be installed on a wireless system.

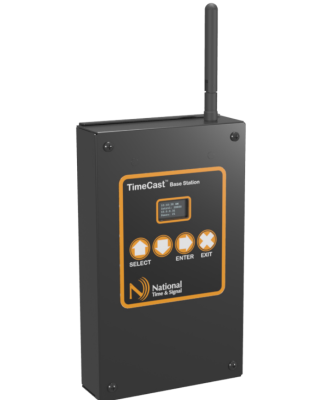

A cost-effective base station is the beginning of your TimeCast™ system. This Power-over-Ethernet (POE) unit is small enough to mount wherever needed. For installations without POE, the unit can be powered with a 5VDC micro USB wall plug.

The easy to understand user interface with 4-line display makes setup a breeze. The LAN connection can use a local or internet SNTP time server to keep accurate time. A battery-less backup system can keep time during outages for over 10 days.

TimeCast™ signals are transmitted to all nearby clocks and is repeated by each clock for complete building coverage. All secondary clock information is gathered by the base station and stored locally or uploaded to the free National Time cloud service.

Description

Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Available in easy to install wall mount and rack mount models with built-in power supplies.

Features

• Ethernet Time Master Clock
• Consumes only one IP network address
• Powers and controls Ethernet time room clocks on two wires
• 2 Power/Data outputs for up to 80 clocks each
• User-friendly web browser interface
• Two relay outputs for scheduled events (bells, tones, etc.)
• 2U standard 19" rack mounting
• Small footprint 11"x13.5" wall mount
• Control output for Booster Power Supplies
• ETMCU-2W Wall Mount adds Time Display and user interface
• Made in the U.S.A.

Additional Specifications

Introducing National Time’s Ethernet Clock System – the future of accurate time display for Schools, Hospitals and Industry. Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Our PoE technology delivers power and ethernet data using only two wires without dedicated wire runs per clock!

Description

Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Available in easy to install wall mount and rack mount models with built-in power supplies.

Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCan™ browser based interface from any computer.

Features

• Ethernet Time Master Clock
• Consumes only one IP network address
• Powers and controls Ethernet time room clocks on two wires
• 2 Power/Data outputs for up to 80 clocks each
• User-friendly web browser interface
• Two relay outputs for scheduled events (bells, tones, etc.)
• 2U standard 19" rack mounting
• Small footprint 11"x13.5" wall mount
• Control output for Booster Power Supplies
• ETMCU-2W Wall Mount adds Time Display and user interface
• Made in the U.S.A.

Additional Specifications

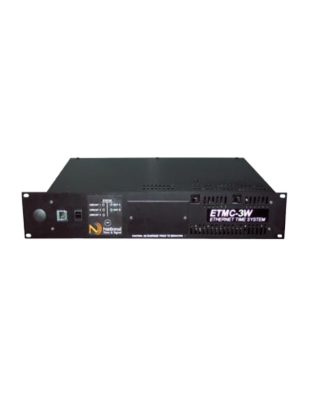

Introducing National Time’s ET Series Master Clock – the future of accurate time display for Schools, Hospitals and Industry. The easiest to install and operate UL Listed master clock in the industry. Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCanTM browser based interface from any computer. ETMCU Series adds an LED time display and user interface to set the time without LAN connected.

Key Features

• 4 Programmable Function Circuits
• Available to 12 Circuits
• Controls Clocks of Most Manufacturers
• Automatic Daylight Savings Adjustment
• 20 Program Schedules
• Special Date Schedule Programming
• 10 Year Lithium Battery Backup
• Manual Activation Switches per Circuit
• NIST, LAN, and GPS timekeeping options
• Web Browser Programming option
• Made in the U.S.A.

Four circuits (standard) to control any combination of clocks or auxiliary outputs. Dry contact relay outputs. Add up to 12 circuits with EXP-4 expansion modules. GPS time accuracy available with the MC100-GPS antenna. Add LAN programming and NIST timebase with the WeM-MC100 adapter.

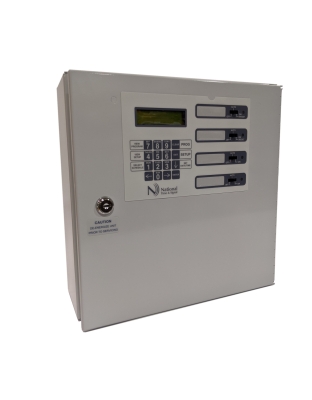

The MC100 is a microprocessor based clock and auxiliary circuit controller capable of synchronizing both digital and analog secondary clocks. The MC100 provides automatic corrections for power outages as well as programmed events such as daylight savings. Powered by a 120VAC supply, the MC100 utilizes a 10 year lithium battery for backup during power outages. A user-selectable time base allows the master clock to either monitor the power-line frequency, internal crystal oscillator as well as an optional GPS or LAN interface to provide the most accurate time keeping. The MC100 comes standard with four circuits which may be used as either clock circuits or auxiliary circuits for tones, bells, and other timed events. Each circuit has an indicating LED and an OFF/AUTO/RESET slide switch for ease of manual control. The wall mount MC100 may be expanded to up to 12 circuits with the addition of EXP-4 circuit expander boards. Programming is easy utilizing a backlit 32 character liquid crystal display and a 16 button keypad. The multifunction keypad provides single button menu access allowing quick and easy time, schedule, and setup changes. Two level password security may be used to protect technician level settings and programmed events. The MC100 supports three program schedules with up to 200 program entries. Each event duration is programmable from 1 second to over 4 days. Attractive neutral Powder Gray finish with Night Blue graphic overlay complete with label pockets for custom circuit legends.

Description

Expand clock or signal circuit capacity of the National MC100 or MC100-RM master clocks by four circuits. The MC100 supports up to 12 circuits, the MC100RM supports up to 8.

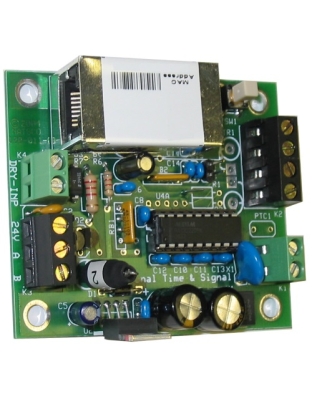

The WeM Web-Enable module upgrades the MC100/MC100-RM master clock to a web-based interface. This provides an easy-to-use interface to configure auxiliary devices such as bells, chimes, tones, or even clocks; it also ensures that your bells and clocks are precisely synchronized.

The WeM operates on any TCP/IP-based Ethernet network, and automatically synchronizes the clock system with any standard NTP or SNTP time server or with the official United States atomic clock time source in Boulder, Colorado. The WeM automatically corrects for daylight savings time and power outages.

The WeM can be configured, programmed, and monitored from any PC on the LAN network through a standard browser interface and a dedicated PC is not required during normal operation. The WeM-MC100 module mounts directly into the standard MC100 wall box.

Description

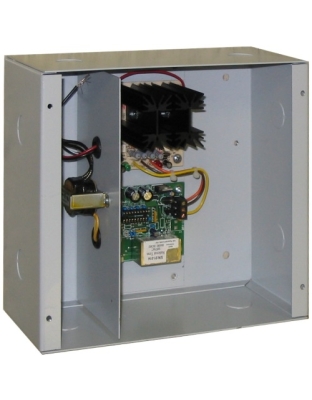

The Web Enabled Network Controller is a LAN programmable Master Clock in its simplest form. It synchronizes its time with your local LAN or NIST over the internet. Two 120VAC solid state outputs can control clock circuits, power supplies, or auxiliary outputs such as tones, bells, lights etc. Programming is accomplished using a web browser from any PC on the network or internet.

Features

• Two 120VAC Solid-State Outputs
• Clock and/or Auxiliary Control
• Selectable Clock System Compatibility
• Automatic Daylight Savings
• LAN Interface
• Remote Web Browser Programming
• Handles Thousands of Events
• Multiple Schedules
• Made in the U.S.A.

More Details

The WeNC is an Internet/LAN based clock system and auxiliary circuit controller. The WeNC comes equipped with two 120VAC 500W solid state outputs. These outputs can be configured to control National Time's clocks as well as most popular clocks of other manufacturers. The outputs can also be used for auxiliary devices such as bells, chimes, tones etc. typically found in schools. The WeNC operates on any TCP/IP-based Ethernet network, and automatically synchronizes the clock system with any standard NTP or SNTP time server or with the official United States atomic clock time source in Boulder, Colorado. The WeNC automatically corrects for daylight savings time and power outages. The WeNC can be configured, programmed, and monitored from any PC on the LAN network through a standard browser interface and a dedicated PC is not required during normal operation. Multiple WeNCs can be utilized to synchronize multiple clock systems throughout a campus, city, district, and beyond.
