AV over IP

• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Inputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output — 2 Dante channels on an RJ–45 connector.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
• Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.

KDS−10 is an advanced, dual stream transceiver for streaming 4K@60Hz (4:4:4) video signals via Ethernet over copper cable. KDS−10 can be set as either an encoder or decoder. As an encoder, it encodes and streams one or two HDMI inputs over an IP network. As a decoder, it receives the encoded signal, decodes it and outputs it to an HDMI output.

• Advanced Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 1G network interface, when streaming one source and 4K@30Hz (4:2:0) when streaming two sources.
• Multi–Standard Video Coding — Configure the transceivers according to your needs to stream using either H.264 or H.265.
• Flexible Input and Output Options — Includes two HDMI inputs that can be streamed alternately or simultaneously.
• Streaming Support — Unicast and multicast over RTP (Real–Time Protocol).
• Flexible Analog Audio Embedding and De–embedding — When in encoding mode, you can select the balanced analog audio input to embed into the streaming HDMI output signal. When in decoding mode, you can extract the HDMI audio signal and output it as balanced analog audio.
• Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages or Protocol 3000 API commands via Ethernet.

• Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.


FC−101Net is a compact 2−channel Dante™ decoder with 2 balanced mono audio outputs. It enables connecting non−Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. FC−101Net is powered over Ethernet from any standard PoE providing network switch.

• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Input — 2 Dante channels on an RJ–45 connector.
• Outputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.

Description

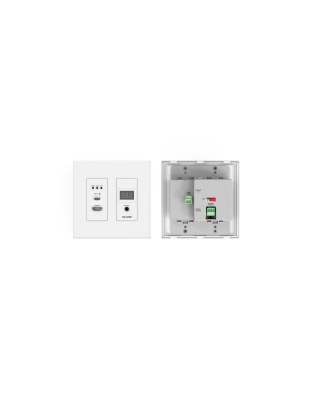

WP−SW2−EN7/US−D(W) is an advanced wall plate encoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.

• Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
• HDR — Supports HDR10 up to 4K@30Hz 4:2:2 12bits.
• Streaming Support — Unicast and multicast.
• Multiple Inputs — One HDMI input and one USB–C input, which support multiple switching policy including Last connected, Priority and Manually.
• Analog Audio Embedding — Embed the unbalanced analog audio into the streaming and HDMI output signal.
• Convenient and Comprehensive Control — Control the unit using intuitive web interface, protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
• Control Gateway — Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
• PoE Support — Option to power with PoE connection from a PoE switch.

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

Description

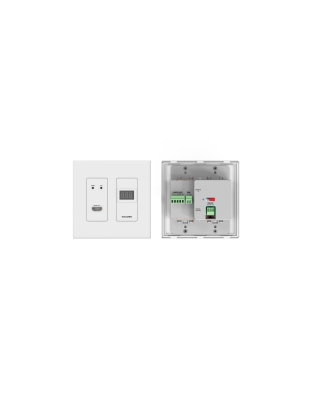

WP−DEC7US−D(W) is an advanced decoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.

• Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
• HDR — Support HDR10 up to 4K@30Hz 4:2:2 12bits.
• Streaming Support — Unicast and multicast.
• Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
• Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
• Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
• Video Wall — Up to 16x16 size.
• PoE Support — Option to power with PoE connection from a PoE switch

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

The Ocean Matrix 10HMIP0005 is an HDMI wall plate extender that utilizes H.264 compression to extend video resolutions up to 1080p@60hz over Cat5e/6. The H.264 compression makes the 10HMIP0005 a network friendly device as it uses less bandwidth to transmit over LANs. The Ocean Matrix 10HMIP0005 supports cable runs up to 394 feet in point-to-point setups but it may also be used to drive a network of receivers and displays using an Ethernet switch.

The wall plate form factor coupled with its HDMI extender capabilities make it the perfect fit for classrooms and conference rooms in video projector applications as well as huddle spaces and similar collaborative environments.

This unit can be powered using the included power adapter or using a PoE source such as a PoE Ethernet Switch or PoE injector. When used with a receiver, both units need to be powered by each unit's power adapter or a PoE power source.

Compatible with OMX-11IPHM0004 or OMX-11IPHM0002 receivers.

Features:

• Convenient Single Gang Wall Mount Design
• Low Bandwidth
• LED HDMI Indicator Light
• Supports Dynamic Host Configuration Protocol (DHCP)
• Cascade Capability
• LPCM Audio Format
• HDCP & TCP/IP, PoE 802.3 Compliant
• Silver Aluminum Wall Plate
• Certifications: CE, FCC

Specifications:

• Protocol H.264 encoder over TCP/IP
• Transmission Distance: 394 feet/120m over Cat5e/6
• Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
• Audio format LPCM, Audio sampling rate 48KHZ
• Streaming Bit Rate 15Mbps
• Power Consumption: 4W
• Dimensions: Wall Plate - 4 1/2 x 2 3/4 x 5/64 inches / Transmitter - 4 1/8 x 1 7/8 x 1 ½ inches
• Weight: 4.2 oz

Item Includes:

• 1- Wall Plate, 1-5VDC/1A Power Supply with Mini-Phoenix Connector, 4-White 5/8 inch Screws, 2- ¬ inch Screws, 1-Mini-Phoenix Connector

Warranty:

• 1 Year

The Ocean Matrix 11IPHM0004 wall plate receiver completes the HDMI extender system when used with the Ocean Matrix 10HMIP0005. The system utilizes H.264 compression to extend video resolutions up to 1080p@60hz over Cat5e/6. The 11IPHM0004 also houses a built-in HDMI audio extractor breaking out the audio to a 3.5mm mini connector. This is perfect for feeding front of house audio systems or conference audio systems.

H.264 compression makes the 10HMIP0005 & 11IPHM0004 a network friendly device as it uses less bandwidth to transmit over LANs. The system supports cable runs up to 394 feet in point-to-point setups but it may also be used to drive a network of receivers and displays using an Ethernet switch.

The wall plate form factor coupled with its HDMI extender capabilities make it the perfect fit for classrooms and conference rooms in video projector applications as well as huddle spaces and similar collaborative environments.

This unit can be powered using the included power adapter or using a PoE source such as a PoE Ethernet Switch or PoE injector. When used with a transmitter, both units need to be powered by each unit's power adapter or a PoE power source.

Features:

• Convenient Single Gang Wall Mount Design
• LED HDMI Indicator Light
• Low Bandwidth
• Supports Dynamic Host Configuration Protocol (DHCP)
• Cascade Capability
• Analog 2.0 Audio Extraction
• HDCP & TCP/IP, PoE 802.3 Compliant
• Silver Aluminum Wall Plate
• Certifications: CE, FCC

Specifications:

• Protocol H.264 encoder over TCP/IP
• Transmission Distance: 394 feet/120m over Cat5e/6
• Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
• Audio format LPCM, Audio sampling rate 48KHZ
• Streaming Bit Rate 15Mbps
• Power Consumption: 3W
• Dimensions: Wall Plate - 4 1/2 x 2 3/4 x 5/64 inches / Transmitter - 4 1/8 x 1 7/8 x 1 ½ inches
• Weight: 4.59 oz

Item Includes:

• 1- Wall Plate, 1-5VDC/1A Power Supply with Mini-Phoenix Connector, 4-White 5/8 inch Screws, 2- ¬ inch Screws, 1-Mini-Phoenix Connector

Warranty:

• 1 Year
