FC−404NETxl is a hybrid, analog and Dante, audio cross−connect mixer. Input audio, either analog lines/microphones or Dante audio over IP channels, are mixed and cross−connected to the analog audio output lines and/or Dante audio over IP output streams. The mixer accepts PoE via its network connection.

• High Performance Standard Mixer — Professional mixer, mixing any audio inputs to any outputs, including auto analog to digital audio format conversion, flexible input or cross–connect level and output gain adjustment. As a standard–compliant mixer, it connects to any market–available AES67–compliant Dante product.
• Hi–quality Sound Mixer — Features a fully flexible and preset signal management. Mix, route, and distribute any inputs and outputs in any audio format via simple click and connect. Select and toggle through 10 presets in the device’s embedded web pages’, or use API commands for a simple setup change with Kramer’s recommended room controller and adjustable level control.
• Professional, Open, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Supports AES67 standard for open IP communication and interop. In addition, FC–404NETxl maintains the quality of the original audio signal with selectable sampling rates.
• Flexible Audio Cross–Connection — Fully configurable inputs, the analog lines, dynamic or condenser microphones, and audio over IP Dante channels, are mixed, format–converted and distributed to any set of outputs, either analog lines or audio over IP Dante streams.
• Comprehensive Unit Control and Configuration Options — Remote IP–based, or local serial, control via user–friendly embedded web pages, Protocol 3000 API commands, touch screen, or other controllers. The device is managed by Kramer Network or Dante DDM management.
• Versatile Powering — Powered by PoE through the Dante port or by a mains power adapter.
• Cost–Effective Maintenance — LED indicators for audio signals and network connection status facilitate easy local maintenance and troubleshooting. Remote IP–driven device management and optional whole site management system via built in web pages and RS–232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field proven deployment.
• Easy Installation — Single cable connectivity for both Ethernet signal and power. Compact DemiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of two units in a 1U rack space with the recommended rack adapter.

Applications

• Enterprise boardrooms and advanced conference rooms
• Education lecture halls and auditoriums
• Governmental large facilities with advanced audio mixing apps
• Any application with hybrid analog and digital audio mixing and cross–connection needs

The Dante 2-Channel Analog Audio Decoder (Model: 500552) is designed to receive digital audio signals from Dante-compliant equipment, then decode and output them as analog audio signals. The unit supports balanced or unbalanced audio output and 3 level gain adjustment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

Applications:
Conference Rooms
Education
Retail Stores
Hotels
Restaurants
Conference Center
Hospitals

Features:

• Interface Dante audio equipment to analog audio equipment
• Supports balanced/unbalanced 2chanalogue audio output
• Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
• Audio output supports 3-level gain adjustment: 18dBu, 0dBu (default) and-10dBV
• Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
• Supports AES67 RTP audio transport

Specifications:

• Technical
• Video Network Bandwidth: 328 Foot
• Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
• Transmission Distance: 328 Foot (CAT6/6A)
• Control Method: Dante Controller

  Connection
• Inputs: 1 x DANTE [RJ45 connector, PoE], 1 x PWR [2-pin phoenix, 3.81mm]
• Outputs: 1x AUD [6-pin phoenix, 3.81mm]

  Mechanical
• Housing: Metal Enclosure
• Color: Black
• Dimensions (WxDxH): 7 x 3.35 x 2.17"
• Weight: .66lb
• Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
• Power Consumption: 1.32W
• Operation Temperature: 32 - 104°F
• Storage Temperature: -4 - 140°F
• Relative Humidity: 20 - 90% RH (no condensation)

Item Includes:

• 1x MuxLab 500552 Dante 2-Channel Analog Audio Decoder - up to 328 Foot via CAT6/6A

Warranty:

• 2 years

This Dante 2-Channel Analog Audio Encoder (model: 500551) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two-channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

Applications:
Conference Rooms
Education
Retail Stores
Hotels
Restaurants
Conference Center
Hospitals

Features:

• Interface analog audio equipment to Dante audio equipment
• Supports balanced/unbalanced 2chanalogue audio input
• Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)
• Audio input supports 3-level gain adjustment: 18dBu, 0dBu (default) and-10dBV
• Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
• Supports AES67 RTP audio transport

Specifications:

• Technical
• Video Network Bandwidth: 328 Foot
• Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
• Transmission Distance: 328 Foot (CAT6/6A)
• Control Method: Dante Controller

  Connection
• Inputs: 1 x PWR [2-pin phoenix, 3.81mm], 1 x AUD [6-pin phoenix, 3.81mm]
• Outputs: 1 x DANTE [RJ45 connector, POE]

  Mechanical
• Housing: Metal Enclosure
• Color: Black
• Dimensions (WxDxH): 7 x 3.35 x 2.17"
• Weight: .66lb
• Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
• Power Consumption: 1.2W
• Operation Temperature: 32 - 104°F
• Storage Temperature: -4 - 140°F
• Relative Humidity: 20 - 90% RH (no condensation)

Item Includes:

• 1x MuxLab 500551 Dante 2-Channel Analog Audio Encoder - up to 328 Foot via CAT6/6A

Warranty:

• 2 years

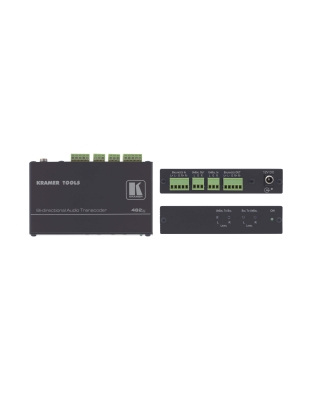

• Connectors — Terminal blocks (balanced & unbalanced).
• Level (Gain) Control — Independent L & R adjustment while transcoding for both balanced to unbalanced conversion and unbalanced to balanced conversion.
• S/N Ratio — 95dB balanced to unbalanced, 87dB unbalanced to balanced, unweighted.
• Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

• Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
• Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
• HDTV Compatible.
• HDCP Compliant.
• HDMI Support — ARC, 7.1 PCM, deep color.
• Audio Embedding — Even without an HDMI source.
• Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
• Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
• Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
• Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.

Description

Musicians and Sound Engineers once swore by those old bright blue DI boxes from Sescom. So by customer demand, Sescom brings back its famous DI Box enlisting our vast knowledge of transformers and developed through countless prototypes actually tested in the real world. This is the simplest and best sound-by-design direct box for connecting a high-impedance, line level, unbalanced output signal to a low-impedance microphone level balanced input via XLR. Due to it's combo jack input and 3-way attenuation, the DIPRO can accept not just unbalanced instrument level signals, but also unbalanced and balanced line level signals and convert them to mic level.

The Sescom DIPRO is perfect for live sound applications, electronic musical instruments or connecting amplifier line level outputs to balanced mixing console inputs. Sescom has actually designed this unit to be single channel... why pay for two channels if you don't need them. Use two units for stereo applications, which would allow you to run effects through one channel while the other channel can remain effect free... if you dare! Heavy duty construction with a black anodized extruded aluminum housing. Introduce your sound to your mixing board/studio-preamp without the colored sound common to other DI boxes. Get the Sescom SES-DIPRO and hear the difference! Our unique high-fidelity circuitry provides the most accurate and true sound your device produces!

Features

• Passive Operation
• High-Fidelity Circuitry
• Balanced/Unbalanced Sensing at Input
• Ground Lift Switch
• Phase Select Switch
• 3-Position Attenuation Switch
• Heavy Duty Construction
• Loop Out Jack

Specifications

• Input Connectors: 1 x 1/4"/XLR Combo Jack
• Output Connectors: 1 x Neutrik XLR-M Mic-Level (Balanced) 1 x 1/4" Loop Out (TS or TRS)
• Input Impedance: 66kΩ @ -20 dB / 75kΩ @ -40 dB / 800kΩ @ -60 dB
• Output Impedance: 1kΩ
• Frequency Response: 20 Hz to 20 kHz +/- 0.25 dB
• Total Harmonic Distortion at 20 Hz: 0.028 @ -20 bB / 0.46 @ -40 dB / 0.34 @ -60 dB
• Linear Performance: < -1 dBr deviation up to 20kHz
• Controls: 3-position Attenuation Switch: -20 dB, -40 dB, -60 dB / Phase Select Switch / Ground Lift Switch
• Dimensions (LxWxH): 5.4" x 3.2" x 1.9"
• Weight: 0.66 lbs (300 grams)
