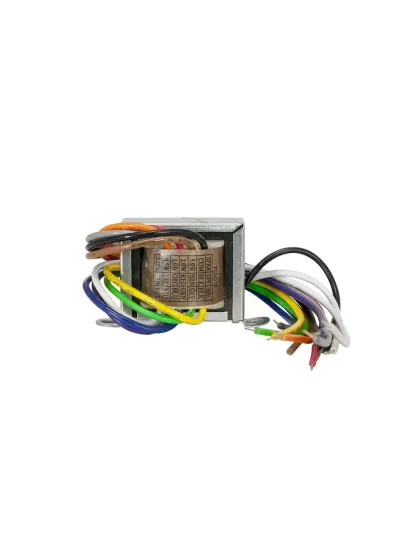

Line Matching Transformer, Dual Voltage 25V/70V 5W
Lowell Manufacturing
The dual-voltage (25V/70V) line matching transformer has been developed for high quality audio systems and general purpose paging applications, where wide frequency response, low insertion loss, and high power handling are critical considerations.
$27.80
Description
The dual-voltage (25V/70V) line matching transformer has been developed for high quality audio systems and general purpose paging applications, where wide frequency response, low insertion loss, and high power handling are critical considerations.
- Primary Voltage: 70V or 25V
- Power Rating: 5W
- Primary Taps: .25, .5, 1, 2, 5W
- Secondary Impedance: 8ohms
- Frequency Response: 50Hz–15kHz (±1dB)
- Lead Length: 8 in.
- Leads: Color-coded
- Unit Size: 2.375 in. x 1.375 in. x 1.25 in.
A&E Specifications
The dual-voltage line matching transformer shall be Lowell Model TLM-572. Primary voltage shall be 70V or 25V with a power rating of 5 watts. Primary taps shall be available at 5, 2, 1, 0.5, and 0.25 watts. Secondary impedance shall be 8 ohms. Frequency response of the transformer shall be 50Hz-15kHz (±1dB) with insertion loss less than 1dB.
- Availability: In Stock
- Model: TLM-572
-
