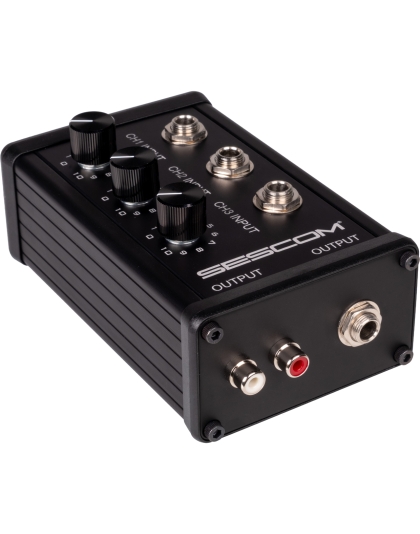

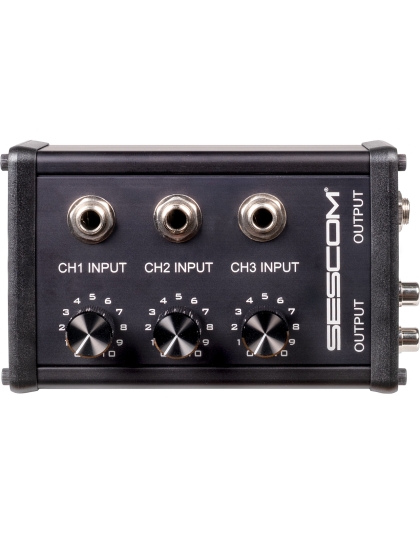

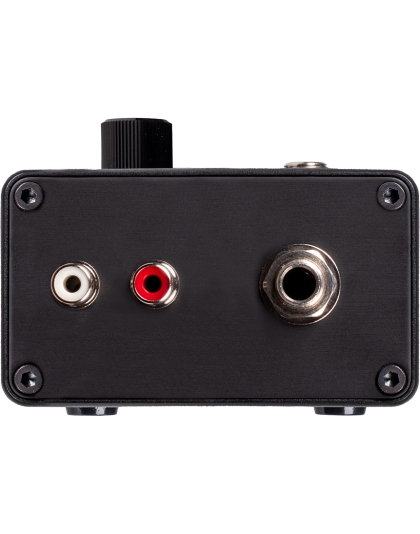

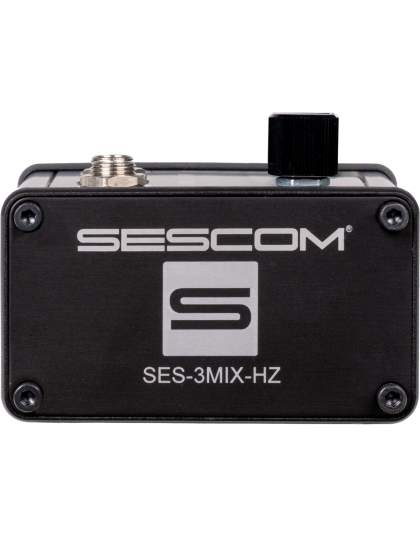

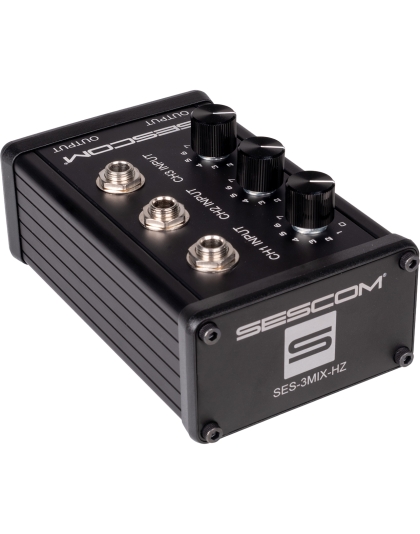

3-Channel High Impedance Mixer with Independent Level Control

When you need an affordable, quick fix to add more inputs to your mixer, portable PA, or other gear, the Sescom 3MIX-HZ provides a simple solution. This 3x1 passive mini-mixer is not only cost-effective but extremely versatile, allowing you to work with instrument-level signals, balanced or unbalanced.

Description

The SES-3MIX-HZ is a plug-and-play unit that combines 3 ¼-inch TRS inputs into Left/Right RCA outputs or a ¼-inch TRS output, making it ideal for integrating additional equipment into mixers with limited inputs. Each ¼ inch TRS channel features a dedicated potentiometer for level adjustment. Intended for use with instrument-level signals, balanced or unbalanced signals. Entirely passive, no batteries or AC power needed.

Sescom Tech Note: When using a TRS signal, if using unbalanced signals, all signals must be unbalanced; if using balanced signals, all signals must be balanced. Do not mix balanced and unbalanced signals. The SES-3MIX-HZ is not compatible with phantom power.

Features

• Easy to Use 3 Channel Instrument-Level Mixer
• High-quality 1/4-inch TRS/TS Inputs
• Left/Right RCA and ¼-inch TRS Outputs
• Passive design requires no power
• Independent level/volume control for each channel
• Rugged black anodized aluminum enclosure

Specifications

• Input Connectors: (3) ¼-inch TRS Jack
• Output Connectors: (2) RCA (White/Red) Jacks, (1) ¼-inch TRS Jack
• Dimensions: 5.25" X 3.25" X 2.75"
• Weight: 11.8 oz
• Impedance (Ohms):
  • Unbalanced: 12.5K to 100K
  • Balanced: 25K to 200K

• Availability: Pre-Order
• Model: SES-3MIX-HZ
• SKU: SES-3MIX-HZ
• Manufacturer:
