Speaker Systems

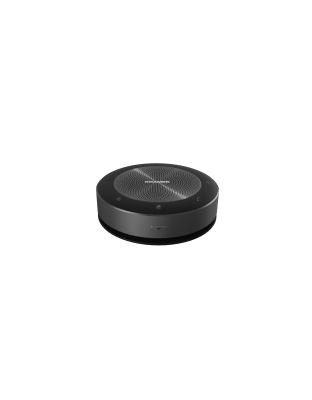

Omnidirectional, compact speakerphone for crystal−clear sound

Ensure all meeting participants are heard clearly from every seat in the room. With 360° omnidirectional audio pickup, high−fidelity sound and simple operation, the K−Speak enhances the audio experience for everyone – whether in the room or joining remotely. The small size and multiple connection options are a perfect fit for huddle rooms and small meeting rooms, where table space is at a premium.

• Fast setup, flexible configuration
  • Fast setup and installation — Connect via AUX, Bluetooth, Bluetooth dongle or USB
  • Can be connected to the K–180Mini via USB for seamless full–room audio and video
  • Two K–Speak speakerphones can be connected, to cover larger tables
  • Optional wireless charging — Reduces tabletop clutter
• Crystal–clear sound
  • 6–element microphone with voice pickup radius of 5m (16.4 ft)
  • Noise and echo cancellation
  • Up to 8 hours operation

Applications

• Enterprise meeting rooms
• Educational spaces
• Any application where high–quality video conferencing is required

Description

The first battery-powered loudspeaker from Electro-Voice and the first weatherized model of its type, EVERSE 8 takes advantage of decades of Electro-Voice engineering expertise – along with the latest advancements in technology – to provide a truly portable and truly wireless audio experience at a price and performance level unmatched by current comparable products on the market.

Whether used for live music, vocal reinforcement and/or audio playback, musicians, DJs, production/rental companies, fitness/activity instructors and other professional, amateur and recreational users can all benefit from EVERSE 8’s superior sound quality, user-friendliness and all-in-one PA system design – a concept that opens-up real pro-audio performance for a wider range of users than ever before. EVERSE 8 comes in a black or white finish, adding an aesthetic angle to its versatility.

Features

• Designed to deliver a step up in sound quality for the battery-powered portable PA segment, with high SPL and full-bandwidth coverage
• Compact, lightweight and weatherized design coupled with extended battery life – longer run time for gigs and events, indoors or outdoors
• Flexible all-in-one feature set, including QuickSmart Mobile app and Bluetooth® for best-in-class control and streaming, an onboard mixer and studio-quality effects – a user-friendly and versatile choice for musicians, DJs, fitness/activity instructors, events/gatherings and more

Real Pro-Audio Performance

With a maximum SPL rating of 121 dB and wide, even 100º x 100º coverage, EVERSE 8’s capabilities defy its compact form factor and set uncompromising new benchmarks for its product segment. Core components include an 8” woofer mounted using EV’s patented SST (Signal Synchronized Transducers) port design, and a high-output titanium tweeter mounted onto a custom constant-directivity waveguide. And, as with all Electro-Voice portable loudspeakers, EVERSE 8’s system reliability is verified with extensive music abuse and endurance testing.

Battery-Powered Convenience

EVERSE 8 is powered by a custom-designed high-capacity Li-ion battery pack, fully optimized for audio use and providing plentiful power for up to 12 hours of run time. Protection circuitry reduces the risk of the battery discharging to such a low voltage that it can no longer be recharged – for example, after long periods in storage. Tool-free screws make removing the battery pack effortless. Uncompromising sound quality, unplugged.

IP43-Rated Weatherized Design

In combination with the rugged polypropylene enclosure, use of the included weatherized input cover allows EVERSE 8 to meet the IP43 rating (water resistant for splashes and light rain) when running on battery power and while Bluetooth® streaming. Built-in feet with no-skid rubber pads ensure the system stays put. Bring EVERSE 8 outside for busking, marching band practice, or the backyard BBQ, or wherever a PA is needed, whatever the forecast.

Compact & Lightweight

Every detail of EVERSE 8 is designed to maximize easy lifting and transportation – all while reinforcing EV’s reputation for real-world durability. An ergonomically designed soft-touch handle and premium lightweight construction make it a breeze to move and mount EVERSE 8. Pack it into the optional tote bag and head out to the gig. It’s the all-in-one pro-audio system you can grab to go.

Expandable Functionality

The integrated 12 V DC port provides convenient power from the EVERSE 8 battery, perfect for powering a wireless microphone system such as the Electro-Voice RE3 or R300 (see user manual for details). Attach the optional accessory tray to the top of an EVERSE 8 to secure receiver hardware in place. A charging port is included for mobile devices if a top-up is needed when streaming. Place on a tripod for a longer throw, set long-side down as a stage wedge using the 55° monitor angle, or use upright with the 30° kick-back angle to project up off the performance area. For stereo setups, EVERSE 8 is equipped for Bluetooth® true wireless stereo streaming.

Powered by Dynacord

EVERSE 8 is driven by a high-efficiency Class-D amplifier and DSP module developed in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord. Pro features include a built in four-channel digital mixer with studio-quality effects and processing, 48 V phantom power, feedback suppression and audio ducking. Between the EV and the D badges, you get the best of both worlds.

Wireless Control & Monitoring

Use the EV QuickSmart Mobile app to adjust all audio, effects and mix functions via your phone or tablet. An intuitive user interface makes it simple to shape your sound to the space, so you can focus on the show.

Description

The Dukane WMIC2C consists of a small light weight lanyard held transmitter with an attachable mic that sends the voice signal via a digital encoded bit stream at high speed to a receiver.

The receiver converts the digital bits stream back to regular audio output sent to a 30 W stereo audio amplifier and speakers. This results in a conventional sound enhancement or voice augmentation system.

There are 20 channels available from 2.400 to 2.480 GHz for operation. Projector and mount not included.

Features

• Lightweight transmitter on lanyard with volume adjust
• Range of 80 feet without being blocked using RF at 2.4GHz
• Automatically selects any of 20 separate channels
• Comes complete with lapel mic, transmitter, and speaker unit
• Rechargeable Li battery for 8 plus hours of operation
• Speaker unit can be easily attached to projector pole mount
• New model WMIC2C has a 30 watt output and 4 selectable modes for the audio output priority

In the Package

• Pole mounted speaker unit
• Clip-on Mic
• Miniature Transmitter
• Receiver and amp in speaker unit
• Lanyard
• Charging Adapter

Specifications

The WMIC2C consists of a small light weight transmitter with an attachable mic. The transmitter sends the digitized voice signal via 2.5 GHz to a receiver inside the pole mounted speaker unit. The receiver converts the signal to audio and feeds a 30 W amplifier connected to the speakers. This results in a voice/sound reinforcement system.

An added Aux Input permits a second audio channel to be included. The unit has 4 modes of operation; Mic only, Mic and Aux mixed, Mic priority, and Aux priority. An optional adapter permits obtaining the speaker audio signal for recording

Description

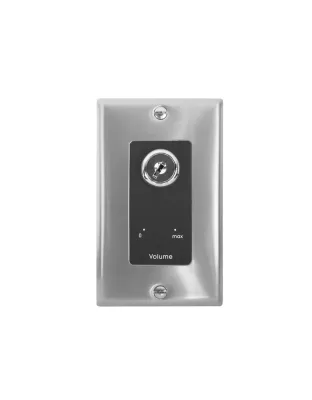

100W mono autoformer attenuator-style volume control with key switch and one-gang wall plate. Patented design secures volume settings for critical paging and emergency systems. For single or multiple speaker lines.

Specifications

• Power Rating: 100W
• Attenuation: 3dB per step (33dB total)
• Use With: 25/70/100V speaker line
• Activation: Key
• Volume Positions: 0-10
• Two steps of 6dB each before off
• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Wall Plate: 1-gang decorator style
• Finish: Stainless Steel & Black
• Fits standard E.O. box (2.125 in. min. depth)

Compliance and Certification

• Made in the U.S.A. with global components
• ETL Listed

A&E Specifications

The volume control shall be Lowell Model No. KL100-DSB with 100W power rating, 3dB per step attenuation, and switch positions 10- Off. It shall feature Phoenix style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decorator style wall plate with stainless steel and black finish. Volume adjustment shall be controlled by a key.

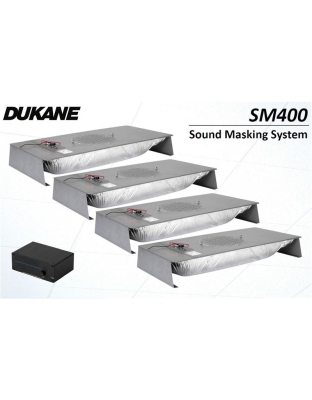

Sound Masking Systems from Dukane are designed for open office spaces where there is a need for conversational privacy. The SM Series includes all the components required for a complete installed solution. The innovative loudspeakers are designed to fit above a standard ceiling tile grid and install quickly and easily. The noise generator and amplifier is perfectly suited for basic sound masking systems. All the necessary parts are included from the speaker wire to the wall conduit. If you are looking to increase the privacy of your small office space and are looking for a turnkey solution then Sound Masking Systems from Dukane are an easy choice.

System Includes:

• Four (4) Quam MA/E9/S2/T8 sound masking loudspeaker assemblies
• AtlasIED TSD-GPN1200 Sound masking generator with built-in amplifier
• Plenum speaker wire
• Adhesive wall surface raceway
• Programmable digital outlet timer
• Wire nuts, security cables and installation parts
