Short Throw
This projector combines Ricoh's projection lens technology with an advanced 3LCD projection system to create stunning visuals with superior image quality and lifelike color reproduction. From the classroom to the boardroom and beyond - short throw projector is an excellent choice for presentations, interactive displays, digital signage and more. The PJWUL5A40ST features 4,500 lumens of brightness and can project displays of 55" to 150" from just 1.7 to 4.8 feet away. The laser light source is rated for up to 20,000 hours of maintenance-free usage, and various image adjustment functions and modes allow projected displays to be tailored to each environment.

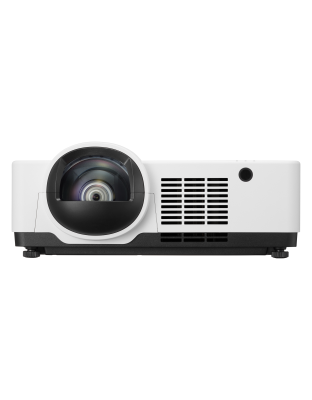

The Dukane 6245UL short throw LCD laser projector provides a unique solution anywhere space is limited or casting a shadow on the screen is a concern. With 4500 lumens, WUXGA resolution and outstanding LCD color fidelity in a compact, manageable cabinet the 6542UL delivers clear images in challenging applications. The 20,000 hour laser life creates a low total cost of ownership projection solution.
Reliable laser projector with unique short-throw lens fits in tight spaces and significantly reduces shadows on the screen
Features
- LCD technology delivers an impressive and accurate image
- Short throw lens is capable of producing a 130" image from only 4' away
- Projector placement closer to the screen saves space and reduces shadow
- Maintenance-free laser light source saves time and money over the life of the projector
- Powerful 16W speakers provide volume needed for most small rooms
- 4K Ready - Display stunning 4K 30Hz content using Dukane’s proprietary high performance video processing/scaling chip
Technologies
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
ECO Mode™
Extends light source life, lowers audible noise and reduces total cost of ownership.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
4K Ready
Display stunning 4K content using Dukane’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-In Speakers
Enhance the visual experience with superior sound
16W Audio
provides the volume needed for large rooms
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
In the Box
- Remote control
- Batteries
- Power cord
- RGB signal cable
- User manual CDROM
- Quick Start Guide
- Security Sticker
Vivid clarity in bright ambient environments with powerful 5500 lumen projection For simulators with larger impact screens, you need a brighter projector to ensure your picture doesn’t get washed out. And golf simulators require more light for the tracking cameras to photograph and analyze hits, with the main consequence being that projectors built for golfing simulators need to put out a lot of brightness. The LU935ST’s 5500 lumens provide users bright projection that fills a typical 13 foot or wider impact screen while delivering excellent image quality. |
16:10 WUXGA (1920x1200) resolution with HDR enabled Beyond higher resolution that exceeds full HD 1080p, WUXGA (1920x1200) provides a taller 16:10 display, an aspect ratio that offers users more room to swing. HDR10 support with BenQ’s exclusive Auto HDR Color Rendition means the LU935T’s high dynamic range performance offers greater brightness, contrast, and image optimization. |
Amazing color accuracy in golf mode In some laser projectors, color aberration can cause excess blues and purples where they are not meant to be. To prevent this issue, BenQ teamed up with color experts to develop an exclusive Golf Mode. Easily activated in settings, Golf Mode corrects purple fringing using the blue and green colors from popular golf software and allows golfers to immerse themselves in pleasantly natural reproductions of blue skies and green grass. |
Cinema-level color gamut with 92% REC709 coverage The LU935ST’s powerful laser projection utilizes a dual color wheel system that covers an unparalleled 92% of Rec.709, the industry-wide standard for color reproduction in HD video and movies. Enjoy golf, movies, and games in perfect color, knowing that what you’re seeing on screen is exactly what the director intended. In addition, the increased color ratios and pure laser-generated RGBY hues dramatically enhance color saturation and guarantee superior projected image quality compared to lamp projectors. |
Placement outside hit zone plus no shadows with 0.81-0.89 throw ratio For most golf simulation setups, a short throw projector helps you put the projector where it is needed to fill the screen while being mounted safely outside the hitting area and without casting a shadow. With throw ratios ranging from 0.81 to 0.89, the LU935ST projects a 171” (8x12ft (screen size); 91x146in (actual viewable size)) -218” image (10x15.5ft (screen size); 115x185in (actual viewable size)) when placed within just 10-14 feet from the screen, delivering a large picture without the expense of optional lenses. |
Off center placement made possible with vertical and horizontal lens shift Lens shift greatly enhances installation flexibility, enabling you to easily adjust the image to fill your screen even if the projector is placed off-center. The LU935ST’s lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the dimensions of the screen, enabling you to mount your projector higher and to the side of the playing area if needed. |
Ideal projection alignment with 2D keystone and corner fit To counteract the trapezoid effect that can occur when a projector is installed or placed off-center, the LU935ST offers a 2D keystone correction range of up to ±30° on both the horizontal and vertical axes. Corner Fit control adjusts each corner for perfectly aligned image geometry. |
HDMI 2.0 for supreme image quality The LU935ST features HDMI 2.0 ports with full support for 4K 60Hz and HDR content, enhanced by greater brightness and contrast for experiences far superior to older versions of HDMI and standard dynamic range projection. |
Maintenance free performance with laser technology BenQ laser projectors eliminate the hassle and cost of installing replacement lamps while providing long lasting 20,000-hour light source life and beautiful colors. You can also start projecting right away without waiting for a lamp to warm up. Every BenQ laser projector has an IP5X-rated, dustproof sealed laser engine that eliminates the need for filters, perfect for environments such as a garage or basement. This also saves you money in the long run. |
