Wireless Clocks
Wireless timekeeping solutions from National Time and Signal are available in two flavors:

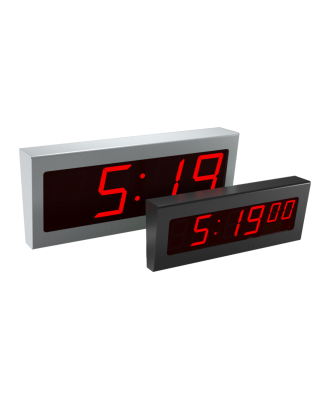

- Spectrum Wi-Fi: Line or battery-powered clocks synchronize their time using standard Internet protocols over Wi-Fi connectivity.
- TimeCast™ Mesh System: Line or battery-powered clocks cascade the time to each other over a license-free wireless mesh network.
About the Spectrum Wi-Fi System
In a world where Wi-FI is all around us, National Time's Wi-Fi wireless clocks are the best wireless clock system available. Why bother with expensive transmitters and radio licensing when your building already has Wi-Fi? Best of all, two-way Wi-Fi technology allows you to monitor your clocks for correct operation at all times.
About the TimeCast™ System
This wireless technology utilizes license-free frequency bands to communicate synchronized time to all of the clocks in your building. A cost-effective base station is the heart of the system keeping accurate time using a local or internet SNTP time server. Time and other data is broadcast from the base station to nearby clocks using a low wattage transmitter. Each clock in the system can relay this data to more distant clocks.
Installation of the system is simplified with National’s exclusive interactive display on the back of each TimeCast™ clock. The display provides a user friendly interface to simplify installation as well as providing status information such as signal strength, battery strength, number of other clocks in range, time and date received,check in times, and firmware information. Help screens aid in fixing problems eliminating tech support and service calls. In the absence of a base station, the time and date can be entered by the user or acquire time from a nearby clock. This allows installation of the clocks if the network infrastructure for the base station is not yet
Standard Features of National's Wireless Clock Systems
Efficient two-way data transmission provides verification of time synchronization, battery level, signal strength, and other clock information. All of this information is available to the user via National Time’s free cloud service. Reports of clock system health can be accessed through the internet or by scheduled e-mail messages.
Telephone, email, and live chat troubleshooting, diagnostic, and programming support for Dukane clock systems. Consult with a factory-certified technician with over a decade of experience working on Dukane communications systems.
Price is per incident, per hour. No other parts or materials are included. Photos are for illustrative purposes only.
About Dukane Wired Clock Systems
Dukane Communication Systems proposes a simple solution – get in sync! Dukane’s family of analog and digital clocks combined with programmable master clocks and other accessories makes keeping and controlling time easier. Dukane can provide turnkey systems including clocks and controllers to keep your facility running on the same schedule, day after day
By synchronizing the clocks within a facility, you ensure that all personnel inside have the same information. No matter the type of environment, things run more smoothly if the time is accurate and consistent.
Some applications, like elementary schools, require analog clocks. Others, like higher education, businesses, and healthcare facilities, prefer digital versions. Dukane offers both analog and digital models and Dukane has priced these clocks to be the most competitive available today.
To simplify installation, Dukane’s clock system components can use standard electrical backboxes rather than custom or proprietary versions. This means that Dukane's clocks can be installed into most existing wall openings.
With the flick of a dip switch, our analog clock can take on the personality of various other syncronous secondary clocks. All you need is our analog clock for all your replacement needs.
Clocks should be easy to find and easy to read, while fitting into their surroundings. Dukane's clocks are styled to be simple, clearly visible, and neutral to their environment. Architects and engineers will appreciate their adaptability.
Dukane offers unique scoreboard and timer capabilities when using the 24CC10 Controller with digital clocks. These can be useful when there is a need to time tests, keep score between teams, or even determine how long certain tasks take to complete.
Dukane's clock systems deliver the accuracy, choices, convenience, styling, and unique features that your facility is looking for, all at a price you can afford.
About Dukane Wireless Clock Systems
Dukane wireless clock solutions comprise a reliable master/slave cascading network that synchronizes clocks from a central on-site master controller. The master clock receives highly accurate time signals from an NTP or GPS source and relays timecodes to local slave clocks via wireless signals.
Each clock in the system is capable of receiving and transmitting the wireless signal which allows it to be used as a repeater while boosting the data stream and sending along the system. With this dual capability there is no limit to the number of clocks that can be installed throughout highrises, sprawling facilities, and small buildings alike.
Because the signal fans out and is repeated by a cascading number of devices, a single clock will typically receive its data from a number of different angles. This dramatically reduces the effect of obstructions, noise sources, or long distances on the reliability of the system. Furthermore, if an individual clock looses its signal, it will link to a nearby clock and automatically synchronize with that new source.
The cascading network also reduces system setup and installation costs, thanks to the relatively low signal strength that is necessary for it to function efficiently. This eliminates the expense and time required to obtain an FCC license.
The Dukane Model 24ZB20 and 24ZB40 Secondary Clocks provide a highly visible, even-intensity, long-life display of time in selectable formats. They can be operated in either 12- or 24-hour format, and at either Bright or Normal intensity levels. The time display on the secondary clock updates to the master clock time at one-minute intervals. These cost-effective digital clocks can be used in a wired time-keeping system or, with the addition of the optional ZigBee module 24ZBM2040, can be installed on a wireless system.
Description
TOAlert, an EverAlert emergency communication platform, is a comprehensive, innovative visual display and campus-wide notification system that supports and extends routine, institutional messaging and emergency notifications. It is compatible with our N-8000 Intercom & VM-3000 Mass Communication Systems, and delivers the functions of three systems in one - keeping building occupants safe, informed, and on-time.
EverAlert Dynamic Display is a Smart 22” class HD screen with built-in speakers. The EverAlert platform supports a virtually unlimited number of displays in either a landscape or portrait orientation. It is preloaded with an operating system software, which communicates to the inCloud management portal through wired ethernet or Wi-Fi network. Additionally, the display is able to resume normal operation without intervention after a temporary power interruption.
Specifications
- Dimensions: master shipping carton, two displays .........................38” L, 8-3/8” W, 18-1/2” H
- Weight: master shipping carton, two displays ....................................37lbs
- Weight: single (device only) ...........................................................................8lbs
- Dimensions: single (device only) ................................................................20 13/16” L, 1-3/8” W, 12 9/16” H
- Dimensions: display screen diagonal ......................................................21.5”
- Lighting: screen ...................................................................................................LCD with LED backlight
- Resolution: display screen .............................................................................1920 x 1080
- Mounting formats ...............................................................................................Landscape (horizontal) or portrait (vertical)
- Internal speakers ................................................................................................2 each at 2W
- USB 2.0 ports .......................................................................................................2
- External speaker output jack .......................................................................3.5mm
- Wired LAN connectivity ..................................................................................10/100M, RJ45 connector
- Wireless LAN connectivity ............................................................................802.11b/g/n (2.4GHz)
- USB provisioning ................................................................................................USB drive with AES encryption
- Wired provisioning .............................................................................................LAN/DHCP Web portal on network connection
- Time synchronization support ....................................................................2 static IP address SNTP servers
- Clock battery backup for power outages .............................................CR1220 lithium
- Maximum relative humidity ...........................................................................85%
- Operating temperature ....................................................................................32˚F – 104˚F
- Input voltage to power supply .....................................................................100-240VAC, 50/60Hz
- Output voltage from power supply ...........................................................12VDC
- Energy efficiency ................................................................................................Level VI
- Power Consumption .........................................................................................25W (average), 40W (maximum), 20W (sleep)
- Certifications ........................................................................................................ROHS, CE/FCC, PSU with UL
Features
- Smart 22” class HD screen with built-in speakers
- EverAlert platform supports a virtually unlimited number of displays
- Display functions in either landscape or portrait orientation
- Preloaded with operating system software
- Communicates to the inCloud management portal through wired Ethernet or Wi-Fi network
- Resumes normal operation without intervention after a temporary power interruption
- Operator adjustable or scheduled screen brightness
- Scheduled sleep mode for energy conservation
- 1 year warranty
Adapter plate allowing standard two tab mounting clocks to be mounted with single screw anchor. Typically used for batter powered clocks with no need for an electrical box. Fits low profile steel 12” round clocks (LR- 12XX).
