Low Smoke Bulk Cables

Flexible Plenum Jacket Combination Shielded and Unshielded Cable

Features:

• Number of Conductors: 4 - 2 Shielded, 2 Unshielded
  AWG: 20
  Stranding: 7x28
  Nominal O.D.: 0.186
  ASTM bare copper
  Polymer alloy insulation
  Cabled construction
  Polyester binders as required
  Shielded component coverage 100% aluminum polyester foil with TC drain wire

Specifications:

• Conductor: 20 AWG Bare Copper
  Stranding: 7x28
  Insulation Material: Flex Plenum PVC
  Insulation Thickness: 0.008'' Nom.
  Number of Conductors: 4 (2 Shielded)(2 Unshielded)
  Shield: 100% Aluminum Polyester Foil
  Drain: Stranded Tinned Copper
  Jacket Material: Flex Plenum PVC
  Jacket Thickness: 0.015'' Nom.
  Overall Cable Diameter: 0.180'' Nom.
  Approximate Cable Weight: 25 Lbs/1M' Nom.
  Flame Rating: NFPA 262 Flame Test
  Temperature Rating: -10¡C To +60¡C
  Operating Voltage: 300 V RMS
  Max.Capacitance Between Conductors: @ 1 KHz 60 pf/ft Nom.
  Capacitance Between Conductors to Shield: @ 1 KHz 108 pf/ft Nom.
  DC Resistance per Conductor: @ 20deg C 10.5 Ohms/1M' Nom.
  Insulation Colors: Black, Red, White
  Jacket Color: Gray
  RoHS Compliant: Yes

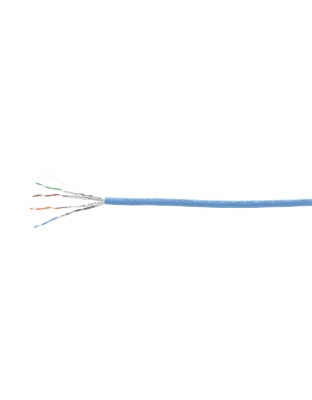

Kramer's BC-UNIKAT cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.

• Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
• Optimized for Kramer Hardware
• HDBaseT Recommended — www.hdbaset.org/hdbaset–recommended–cables/.
• Reaction to Fire Classification — Dca–s2,d1,a1 (optional: B2ca–s1,d1,a1).
• RJ–45 Connector — The larger diameter 23AWG twisted pair cable requires a special RJ–45 connector
