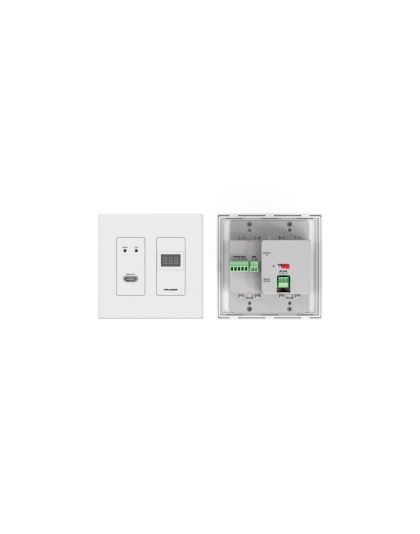

AVoIP Wall Plate Decoder for 4K60 4:2:0, HDR10
High–performance, highly scalable, AVoIP Wall Plate Decoder for 4K60 4:2:0, HDR10 over 1G Network, with white Decora® Design Frame Sets
$1,540.00
Description
WP−DEC7US−D(W) is an advanced decoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.
- Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
- HDR — Support HDR10 up to 4K@30Hz 4:2:2 12bits.
- Streaming Support — Unicast and multicast.
- Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
- Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
- Video Wall — Up to 16x16 size.
- PoE Support — Option to power with PoE connection from a PoE switch
Applications
- For real–time essential installations such as command and control rooms
- For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
- AV distribution systems with one or more sources and many displays in schools, universities, and public venues
- For AV installations where low latency KM/KVM capabilities are required
- Model: WP-DEC7
-
Manufacturer:
