2-Channel Dante Audio Analog Decoder

Interface analog audio equipment to Dante audio equipment
$298.00
Qty:
Add to Cart
Print Add to Compare

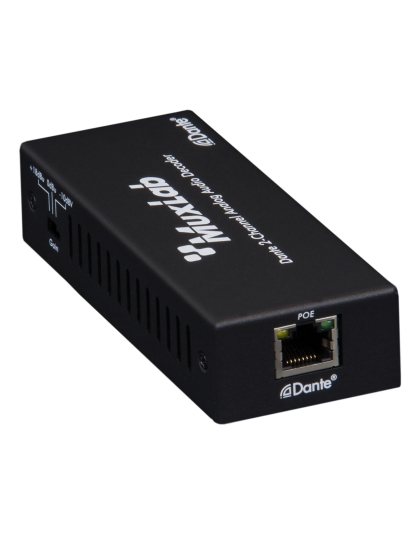

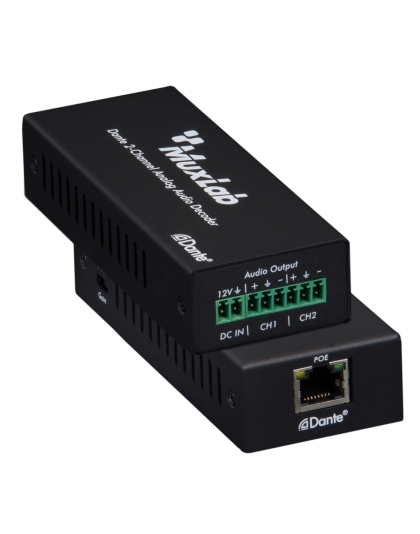

The Dante 2-Channel Analog Audio Decoder (Model: 500552) is designed to receive digital audio signals from Dante-compliant equipment, then decode and output them as analog audio signals. The unit supports balanced or unbalanced audio output and 3 level gain adjustment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

Applications:
Conference Rooms
Education
Retail Stores
Hotels
Restaurants
Conference Center
Hospitals

Features:

  • Interface Dante audio equipment to analog audio equipment
  • Supports balanced/unbalanced 2chanalogue audio output
  • Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
  • Audio output supports 3-level gain adjustment: 18dBu, 0dBu (default) and-10dBV
  • Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
  • Supports AES67 RTP audio transport

Specifications:

  • Technical
  • Video Network Bandwidth: 328 Foot
  • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
  • Transmission Distance: 328 Foot (CAT6/6A)
  • Control Method: Dante Controller

    Connection

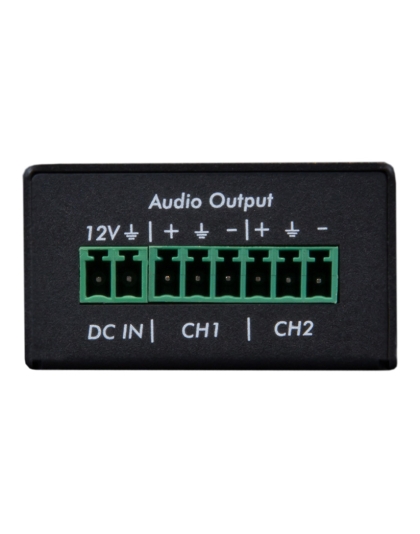

  • Inputs: 1 x DANTE [RJ45 connector, PoE], 1 x PWR [2-pin phoenix, 3.81mm]
  • Outputs: 1x AUD [6-pin phoenix, 3.81mm]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions (WxDxH): 7 x 3.35 x 2.17"
  • Weight: .66lb
  • Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
  • Power Consumption: 1.32W
  • Operation Temperature: 32 - 104°F
  • Storage Temperature: -4 - 140°F
  • Relative Humidity: 20 - 90% RH (no condensation)

Item Includes:

  • 1x MuxLab 500552 Dante 2-Channel Analog Audio Decoder - up to 328 Foot via CAT6/6A

Warranty:

  • 2 years
  • Availability: In Stock
  • Model: 500552
  • Manufacturer: Muxlab
