HDMI Switchers

The VS−81H is a high−performance switcher for HDMI signals. It equalizes the signal and switches one of the 8 inputs to a single HDMI output.

• Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
• HDCP Compliant.
• HDTV Compatible.
• HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
• 3D Pass–Through.
• EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Dual Mode — PC and DVD Modes selectable by input.
• Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), Ethernet & IR remote (available upon request) .
• Video Disconnect.
• Front Panel Lockout.
• Worldwide Power Supply — 100–240V AC.
• Standard 19” Rack Mount Size — 1U. Rack "ears" included.

VS−411X is a high−performance 4x1 automatic switcher for 4K HDR, HDMI video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

• Plug & Play Auto Switcher — Automatically plays the switched source signal on the connected display according to user–configured preferences, such as priority or last–connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
• HDMI Signal Switching — HDCP 2.2 compliant, Supporting deep color, x.v.Color™, CEC, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures plug & play operation for HDMI source and display systems.
• Audio De–embedding — The digital audio signal passing–through to the HDMI output, is de–embedded, converted to an analog signal and sent to the stereo unbalanced analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
• Simple Switching Operation — Local buttons or remotely connected contact–closure buttons for flexible user input selection and switching control.
• Cost–Effective Maintenance — Status LED indicators for HDMI ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade ensures lasting, field–proven deployment.
• Easy Installation — Compact DemiTOOLS® fan–less enclosure for user–reachable table mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

VS−211H2 is a high−performance auto switcher for 4K@60Hz (4:4:4) HDMI video signals. Offering priority and last−connected auto switching scheme options, it automatically switches input signals to output connection, according to the selected switching scheme, and based on active video signals detection.

• HDMI Signal Switching — HDR and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Cost–Effective Maintenance — Status LED indicators for HDMI ports facilitate easy local troubleshooting.
• Easy Installation — Compact DigiTOOLS® fan–less enclosure fits for convenient under tables or dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

Description

YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more.

YoloBox Pro brings the professional features and processing power required for the most demanding live broadcasts.

The YoloBox Pro is 8-inch large and 750g weight,  featuring 3 HDMI inputs,  1 HDMI output, 1 full-featured USBC, allowing you to switch up to 8 sources, of which up to four physical local cameras. The other two pre-recorded videos, either stored on an internal memory chip or from a web source. The Pro supports input resolutions of 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device.

The YoloBox Pro provides you with a large LCD touchscreen interface for easy streaming and control, demonstrating the streaming image as well as the input streams; the LCD display also presents the control interface, which allows you to switch sources of information with a simple touch. It also has a line-level audio input, and a separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and mic-in can be connected to the microphone for recording.

Touchscreen Control

The YoloBox provides you with a large touchscreen interface for easy streaming and control.

Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Overlays

You can brand your live stream by adding logos/watermarks/rolling captionsCustomized PiP options, including Interview mode, allow you to bring a unique look and feel to your streamEngage with your audience in real time via feature comment overlaysThe customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking resultsBuilt-in lower-thirds templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms

Major streaming platforms such as Facebook live, YouTube, and Twitch are directly integrated, you can simply login your social account and stream.

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

PDF

You can load a PDF as a local source to your YoloBox

Battery Life

The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.

Key Features:

• 3 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 x HDMI out; 1 x SIM card; Mic-in/Line-in;
• Live switch up to 8 sources
• Direct integration with YouTube/Facebook/RTMP(s)
• Built-in simultaneously streaming
• Stream via Ethernet, Wi-Fi, LTE 4G
• Import pictures/videos from SD card
• Add logos/watermarks/rolling captions to the stream
• Feature comment overlays to the Stream
• Add and edit customizable scoreboard, built-in lower-thirds
• Load PDF as an extra source locally
• Records internally to SD card
• Battery life up to 3 hours

Description

WP 20CT is is an intelligent 2x1 automatic wall−plate switcher transmitter over long−reach HDBaseT for 4K USB−C and HDMI video signals. WP 20CT offers an intelligent switching experience with built−in Maestro room control and the standard priority / last−connected switching function based on active video signal detection.

Features

• High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
• Simple and Powerful Maestro Room Control — Out–of–the–box configured room control for a typical meeting room setup, and intuitive user interface enables you to control your meeting room elements. Room devices are controlled, locally or remotely via HDBaseT, right out–of–the–box by an extensive range of triggers, including input/output connectivity and routing. By minimizing user intervention, Maestro room control saves meeting prep time and minimizes human error before presentations.
• Automatic Display Operation — Part of the out–of–the–box Maestro configured room automation. Meeting presentation is simplified by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
• BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device, if PD–2.0–capable, with up to 60 watts of power (with the use of an optional 20V power supply).
• Plug & Play Auto Switcher — Automatically plays the switched user device source signal on the connected display according to user–configured preferences, such as priority or last–connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
• HDMI™ Signal Switching — HDCP 2.3 compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures plug & play operation for HDMI source and display systems.
• Multi–channel Audio Switching — Up to 8 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• Audio De–embedding — The digital audio signal passing–through to the output, is de–embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
• Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
• Reliable PoE (Power over Ethernet) Powering — Auto–senses the HDBaseT extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
• Cost–effective Maintenance and Management — Status LED indicators for Power, HDMI, and HDBT ports facilitate easy local maintenance and troubleshooting. Local device management using built–in web interface via the USB–C connection . Local firmware upgrade via USB–C and RS–232 connection tool ensure lasting, field–proven deployment.
• Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoC) connections

Description

Live Production in the Palm of your Hand

• Mini, Mobile, Mighty
• Smaller Size (5.5 inch LCD screen)
• More Affordable
• Monitor Mode

Features

• Go live in 1080/60
• Multi-Streaming
• 4G LTE Support
• Graphic Overlays
• Monitor Mode
• Touchscreen control
• Comment overlays
• Multi-Streaming
• CPU QualComm 660 (same as YoloBox Pro)

Camera Monitor Mode

Use YoloBox Mini as a monitor and to record

Total Touch Control. Zero Learning Curve

Professional live streaming finally accessible for everyone

Pocket Size, Ultra Portable

Stream from anywhere on the go (5.5 inch LCD screen)

Stream to Multiple Destinations

Simultaneously streaming to Facebook, YouTube, Twitch, or others through RTMP

Live Production at your Finger Tips

Extreme ease of use. Best for one-man crew

4G LTE Support

Stream overall available networks from Ethernet, WiFi, 4G LTE modems, and hotspots

Feature Comment Overlays

Engage with your audience by featuring the comment to the stream with a single tap

Graphic Overlays

Level up video productions by adding custom scoreboards, text, logos, countdown timer, and more

• Logos
• Watermarks
• Rolling captions
• Scoreboard
• Lower-thirds
• Countdown timers

A Pro Tool, Made for Everyone

• Weddings
• House of Worship
• Sports
• Videographer
• Music
• Live Selling
• IRL
• Game
• Creator

Small in Size, Big in Pro Capabilities!

The industry’s first REALLY All-IN-ONE live production system that doesn’t require anything external. It’s simple, portable, reliable and affordable.

• Encoder, switcher, recorder, monitor, in One
• Live switch up to 6 video sources
• No computer/desk workstation required
• Great ease to operate, touchscreen control
• Super portable, fit into your pocket
• Support 4G LTE & built-in battery - Live On the Go

Premium Features are FREE

Additional software features will be continuously added by our dedicated engineering team.

• Stream Simultaneously to Multiple Destinations
  Stream to Facebook, YouTube, and any other RTMP(S) websites at the same time to get more views
• Add Video Sources From Local SD Card
  Roll in pre-recorded video for intro, countdown, B-rolls or special segments
  Load PDF as an Extra Source Locally
  Enhance the storytelling by one extra source

Add Overlays For a Pro Look

Now you can even have Side-By-Side and Split-View directly on YoloBox.

• Brand Your Live Stream By Adding Logos/Watermarks/Rolling Captions
  An even more professional look with customized PiP options including Interview Mode
• Feature Comment Overlays to the Stream
  Engage with your audience in real time
• Add Customizable Scoreboard
  Display real-time controlled scoreboard to make your game look professional
• Add and Edit on the Built-In Lower-Thirds Templates
  Be it an intro of the speaker or Call-To-Action messages to drive viewers’ actions

3 Simple Steps

YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

1. CONNECT
   Connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug your camera into YoloBox, you are way to go.
2. CAPTURE
   YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.
3. STREAM
   Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.

YoloLiv provides you an innovative experience of livestreaming

Yolobox is an intelligent solution which can be used in many diversified livestreaming activities, you can start your livestream from anywhere to anytime.

Whatever you live stream for, YoloBox will improve your overall production. Take a look at what makes YoloBox a fit for your use case.

Worship

With YoloBox you could livestream and record a sermon all yourself, no profesional team required, without the need for a big budget. Let YoloBox take your worship service beyond the bounds of the building to reach out more with your community.

Videographer

Whether you’re working on a project for a corporation, organization or wedding, YoloLiv can make your livestream events easier by providing integrated live product. With reduced costs and setup times, YoloLiv allows you to add a new dimension to your business.

Government

Livestreaming local government meetings ensures that all members of a community are able to "attend," whether they can be physically present or not.

Sports
From high school games to performance training to sports evaluation, YoloBox is a must-have in the world of sports. And with multiple angles and a multi-view view being streamed live, both the fans and players will be asking you to see the highlights.
Education

Now your school can host live, multi-angle livestreams of the classroom, pep rallies, special performances, club activities – whatever’s going on that week. And at the center of it all is YoloBox.

Corporate

Take corporate events to the next level by streaming quarterly meetings from multiple angles and with minimal effort. YoloBox makes it easy for your company to create live-switched, multi-angle video from almost anywhere.

The RGBLink Mini makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated USB 3.0 output. mini is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilized for a professional impression every time. On board features include transition effects and external audio embedding, along with integration support for UVC PTZ cameras and more.

Take video mixing anywhere with the mini video mixer providing personal video control where it is needed

Large buttons make quick actions easy, while the provision of the T-bar allows smooth transition between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4in UNC accessories, mini is at home in any studio.

Scale Convert Present
The RGBlink advanced hardware-based video processing engine supports scaling and full 4:4:4 color space for optimal visual output.

Preview Built-in
Preview sources and PVW/PGM directly from the LCD display on the front panel.

Connect & Control
Control directly from the front panel, or remotely via a LAN connection with apps for laptops and mobile devices, or integrate with third party apps

Stream & Capture
Connect mini to a USB 3.0 device for capture or streaming to virtually any platform via OBS.

Synchronise with Audio
Utilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronisation.

Crop, Position, Scale
Focus on exactly the video area required with pixel-to-pixel cropping, XY positioning and scaling to zoom.

Features:

• USB 3.0 live streaming port
• Compact design
• Live preview of four inputs
• Seamless switching
• Auto cut and manual switch
• Transition effects
• PIP (Picture-In-Picture) presets
• Audio insert/extract
• HDMI output as PGM or Multi-view
• Control remotely from app
• Support for third party apps including OBS Studio

Specifications:

• Connectors
• Input: HDMI 4 x HDMI-A
• Output: HDMI 1 x HDMI-A, USB 3.0 1 x USB Type A
• Audio: In 1 x 3.5mm Stereo Jack, Out 1 x 3.5mm Stereo Jack
• Communications: LAN 1 x RJ45
• Power: 1 x DC Jack

  Performance
• Input Resolutions: HDMI
• SMPTE: 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
• VESA: 1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1080@60 | 1920x1200@60
• Output Resolutions: HDMI
• SMPTE: 720p@50/60 | 1080p@24/25/30/50/60
• VESA:1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x1024@60 | 1360x768@60
• USB Streaming: 1280x720@50/60 | 1280x1024@60 | 1360x768@60 | 1920x1080@24/25/30/50/60

  Supported Standards
• HDMI: 1.3
• USB: 3.0
• H.265: ITU-T H.265 | ISO/IEC 23008-2

  Power
• Input Voltage: DC 12V/1.5A (via Plug Pack supplied)
• Max Power: 18W

  Environment
• Temperature: -0°~70°
• Humidity: 10% ~ 85% RH

The RGBLink Mini+ makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated USB 3.0 output, mini is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilized for a professional impression every time. On board features include PIP, transition effects, and external audio embedding and with the mini+ feature pack there is support for Sony VISCA PTZ cameras and DSK. Large buttons make quick actions easy, while the provision of the T-bar allows smooth transition between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4 in UNC accessories. Mini is at home in any studio.

Take video mixing anywhere with the mini video mixer providing personal video control where it is needed

Large buttons make quick actions easy, while the provision of the T-bar allows smooth transition between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4in UNC accessories, mini is at home in any studio.

Scale Convert Present
The RGBlink advanced hardware-based video processing engine supports scaling and full 4:4:4 color space for optimal visual output.

Preview Built-in
Preview sources and PVW/PGM directly from the LCD display on the front panel.

Connect & Control
Control directly from the front panel, or remotely via a LAN connection with apps for laptops and mobile devices, or integrate with third party apps

Stream & Capture
Connect mini to a USB 3.0 device for capture or streaming to virtually any platform via OBS.

Synchronise with Audio
Utilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronisation.

Crop, Position, Scale
Focus on exactly the video area required with pixel-to-pixel cropping, XY positioning and scaling to zoom.

Features:

• USB 3.0 live streaming port
• Compact design
• Live preview of four inputs
• Seamless switching
• Auto cut and manual switch
• Transition effects
• PIP (Picture-In-Picture) presets
• DSK/Chromakey
• Apply LOGO
• Audio insert/extract
• HDMI output as PGM or Multi-view
• Control remotely from app
• Remote control of PTZ cameras
• Support for third party apps including OBS Studio

Specifications:

• Connectors
• Input: HDMI 4 x HDMI-A
• Output: HDMI 1 x HDMI-A, USB 3.0 1 x USB Type A
• Audio: In 1 x 3.5mm Stereo Jack, Out 1 x 3.5mm Stereo Jack
• Communications: LAN 1 x RJ45
• Power: 1 x DC Jack

  Performance
• Input Resolutions: HDMI
• SMPTE: 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
• VESA: 1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1080@60 | 1920x1200@60
• Output Resolutions: HDMI
• SMPTE: 720p@50/60 | 1080p@24/25/30/50/60
• VESA:1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x1024@60 | 1360x768@60
• USB Streaming: 1280x720@50/60 | 1280x1024@60 | 1360x768@60 | 1920x1080@24/25/30/50/60

  Supported Standards
• HDMI: 1.3
• USB: 3.0
• H.265: ITU-T H.265 - ISO/IEC 23008-2
• PTZ: VISCO

  Power
• Input Voltage: DC 12V/1.5A (via Plug Pack supplied)
• Max Power: 18W

  Environment
• Temperature: -0°~70°
• Humidity: 10% - 85% RH

The Datavideo SE-500HD a multi-format live event AV switcher with scaling on every input, built-in audio mixer, and exceptional 4:4:4 10-bit 1080p video quality. Its portable & compact design with easy-to-use professional features makes it ideal for breakout rooms, corporate events, and any live event production. Four scaled HDMI inputs and two HDMI outputs allow users to mix and match video resolutions and connect a variety of video sources that include laptops, tablets, and cameras without the need for video converters.

Don't let the SE-500HD fool you with its compact size and affordable price. It is loaded with features such as Lumakey for graphic overlays, split screen for side by side views of the presenters, and PIP (picture-in-picture) for PowerPoint presentations. Plug in microphones and other audio sources directly into the SE-500HD and use the built-in audio mixer to simplify your workflow and get professional sound. Dedicated buttons make it user friendly and easy for anyone to operate it like a pro. Professional features, compact all-in-one design and affordable price point makes the SE-500HD ideal for any live presentation.

Features:

• 4 Channel HD/SD Digital Video Switcher
• Supports up to Full HD 1080p
• 10-bit processing
• Video Input: 4x HDMI
• Video Output: 2x HDMI (1x Multiview | 1x Program)
• Audio Input: 1x Stereo RCA | 2x Microphone
• Audio Output: 1x Stereo RCA | 1x Stereo headphone mini Jack
• Audio Mixer: 2x Mic | 1x Stereo RCA | 1x internal Digital embedded
• Audio LED Meter
• Transitions: Wipe, Mix & Cut
• Keyer: Lumakey
• Picture-in-picture and split functions
• Tally Output

Specifications:

• Video Standard: Full HD & SD
• Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz; 576i 50Hz; 480i 59.94Hz
• Video Processing HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4
• Video Input: 4x HDMI
• Computer Graphic Interface: 4 via HDMI
• Video output: 2x HDMI (1 is MV, 1 is PGM)
• Built-in Multi-view monitoring out: HDMI
• Audio input: 1x Stereo RCA (L/R); 2x Mono Microphone; De-embedded Digital Audio (2 CH)
• Audio output: 1x Stereo RCA (L/R); 1x Stereo headphone (Mini Jack with volume control); Embedded Digital Audio (2 CH)
• Embedded audio support: embedded 2-CH digital/analogue audio
• Effects: FTB, Cut, Wipe with border
• Sync / Reference In/Out: Built-in Genlock (internal)
• Tally Output: 1x D-sub 15pin, dual color
• Chassis: Unibody
• Power: DC 12V 29W
• Accessory: CB-60/61/62 (30/50/100m)

Item Includes:

• 1x SE-500HD product
• 1x AD Switch DC 12V with AC Cord
• 1x Thank You Card

VS−411UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. VS−411UHD automatically switches one of four HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is detected. They also support Kramer’s Step−in over HDMI technology.

• Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution — 4K@60Hz (4:2:0).
• Compliance — HDCP and DVI 1.0.
• Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
• Features Kramer reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
• HDTV Compatible.
• Customized Audio Output — Embed a companion analog audio signal into its HDMI input signal, de–embed the audio from the HDMI input and route it to the balanced stereo audio line out, de–embed HDMI ARC from the output and route it to the balanced stereo audio line out, or route the analog audio inputs directly to the stereo audio line out.
• Automatic Video Input Detection & Selection.
• Auto Power Off — When no HDMI input for 10 seconds (selectable).
• Step–In Over HDMI Technology.
• Active Switching — Selectable manual or fast auto switching according to last connected or preset priority.
• Selectable HDCP Switching.
• EDID Configuration Options.
• Default EDID.
• Contact Closure — For remote manual switching override.
• Lock Button
• Firmware Upgrade — Over RS–232, mini–USB.
• Software Support — Protocol 3000, EDID Designer, K–Upload via RS–232.
• Varied Control Options — Front panel buttons, contact closure, IR, RS–232 Protocol 3000.
• Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

The VS−211UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. The VS−211UHD automatically switches one of two HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is detected.

• Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution — 4K@60Hz (4:2:0).
• Compliance — HDCP and DVI 1.0.
• Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
• Features Kramer reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
• HDTV Compatible.
• Customized Audio Output — Embed a companion analog audio signal into its HDMI input signal, de–embed the audio from the HDMI input and route it to the balanced stereo audio line out, de–embed HDMI ARC from the output and route it to the balanced stereo audio line out, or route the analog audio inputs directly to the stereo audio line out.
• Automatic Video Input Detection & Selection.
• Auto Power Off — When no HDMI input for 10 seconds (selectable).
• Step–In Over HDMI Technology.
• Active Switching — Selectable manual or fast auto switching according to last connected or preset priority.
• Selectable HDCP Switching.
• EDID Configuration Options.
• Default EDID.
• Contact Closure — For remote manual switching override.
• Lock Button.
• Firmware Upgrade — Over RS–232, mini–USB.
• Software Support — Protocol 3000, EDID Designer, K–Upload via RS–232.
• Varied Control Options — Front panel buttons, contact closure, IR, RS–232 Protocol 3000.
• Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

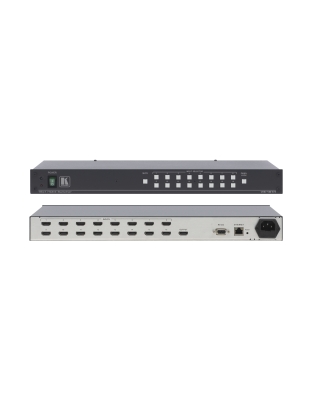

• Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
• HDCP Compliant.
• HDTV Compatible.
• HDMI Support — Deep Color, x.v.Color™, Lip Sync, up to 7.1 Uncompressed Audio Channels.
• 3D Pass–Through.
• EDID Capture — Copies and stores the EDID from a display device.
• Dual Mode — PC and DVD Modes selectable by input.
• Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), Ethernet & IR remote (available upon request) .
• Video Disconnect.
• Front Panel Lockout.
• Worldwide Power Supply. — 100–240V AC.
• Standard 19” Rack Mount Size. — 1U. Rack "ears" included.
