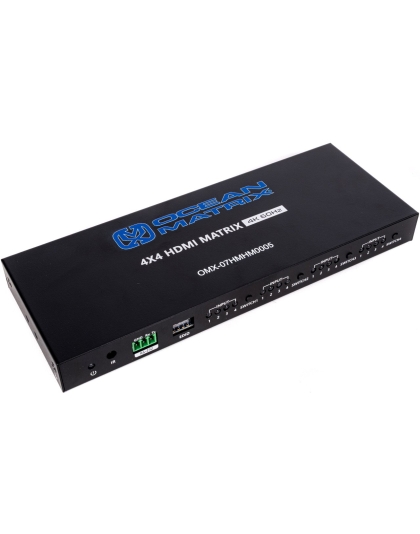

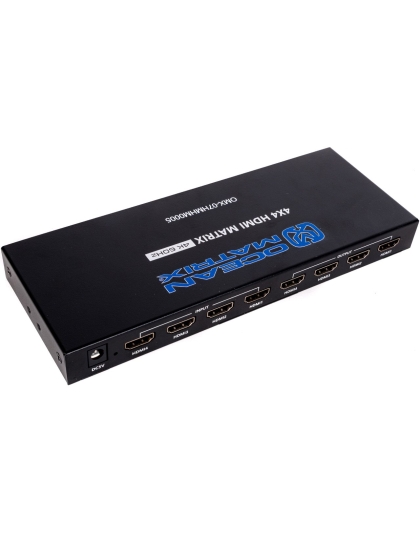

When you need to direct multiple HDMI sources to multiple destinations, the perfect solution is the Ocean Matrix 07HMHM0005 4x4 HDMI matrix switcher. This unit will become the central nervous system for all of your video routing needs allowing you to send a single signal to multiple places or, in full-fledged operation, select between four inputs and route them to any or all outputs simultaneously.
The Ocean Matrix 07HMHM0005 has a home in both presentation and video sharing applications. The unit supports 4096 x 2160 at 60Hz HDR signals as well as multiple switching modes including IR remote control, front panel selection and RS-232 control. The product has 16 EDID setting possibilities, via DIP switch, to ensure your signal will always be visible on any flat screen monitor. Any two of the four outputs also support auto-downscaling.
Features:

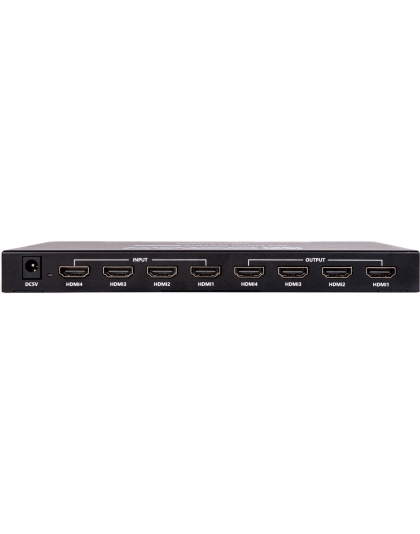

- Supports 4 HDMI Input Signals and 4 HDMI Ouptut Signals
- Supports up to 4096x2160@60Hz Resolution and is Backwards Compatible
- HDR10 Supported

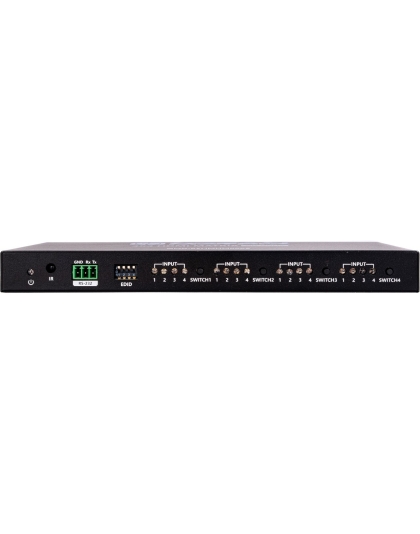

- Multiple Switching Mode: IR Remote Control, front panel buttons, & RS232
- Built-In EDID Management
- Any Two of the Four HDMI Outputs Support Auto Down-Scaling
- Lighting, Surge, and ESD Protection
Specifications:
- HDMI 2.0 (HDR, YUV4:4:4)
- Compatible with HDCP2.2, HDCP1.4
- Transmission Rate: 18Gbps
- Bandwidth: 600MHz
- Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz / 3840x2160@24/25/30/60Hz / 4096x2160@24/25/30/60Hz
- Supported Audio Formats: LPCM7.1 / DTS-HD / DTS-AUDIO / DOLBY DIGITAL PLUS / DOLBY TRUEHD 7.1 / DOLBY DIGITAL 7.1CH / DOLBY ATMOS
- RS-232: 3 Pin (GND/Rx/Tx), BAUD Rate 9600
- Voltage: DC5V/1A
- Power Consumption: < 4W
- Working Temperature: -4°F - 140°F (-20°C - 60°C)
- Storage Temperature: -22°F - 158°F (-30°C - 70°C)
- Dimensions (LxWxH): 8.375 x 3.162 x 0.845"
- Weight: 0.8063 lbs (367g)

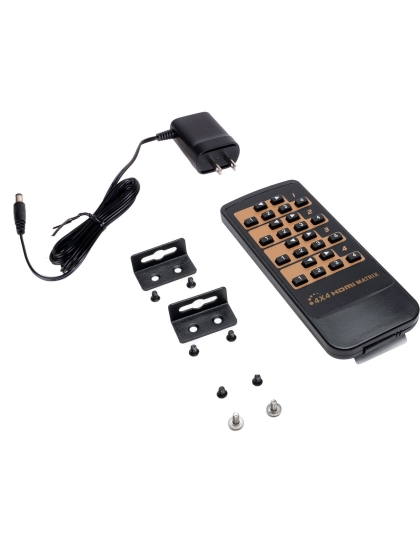

Item Includes:
- 1 x OMX-07HMHM0005 4x4 HDMI Matrix Switcher
- 1 x Power Adapter 5V/1A
- 1 x Remote Control
- 2 x Mounting Ears
- 6 x Mounting Screws
- 2 x Grounding Screws
- 1 x Terminal Block
- Availability: In Stock
- Model: OMX-07HMHM0005
-
