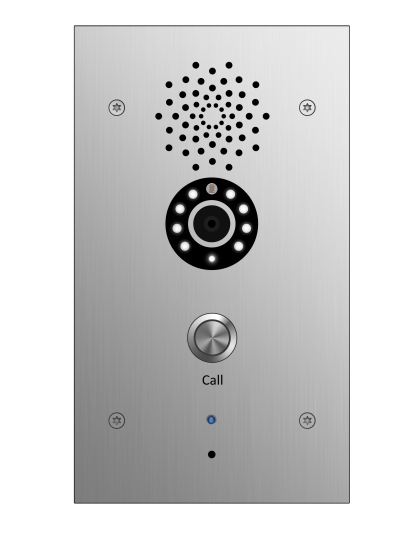

Outdoor/Indoor SIP Video Door Station
The N-SP80VS1 SIP Video Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch, a night-view camera and two control relay outputs.
$1,077.10
The N-SP80VS1 SIP Video Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch, a night-view camera and two control relay outputs.
The N-SP80 series SIP Video Intercom System offers flexible audio and video communications using standard SIP and Onvif protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without a SIP server. TOA’s N-8000SG SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system.
| one Features | Web support multi-language Auto-answer Volume control Direct IP call without SIP proxy Auto-Provision |
| Network Features | 2x10/100Mbps Ethernet Port Security: Password Protection, IP address filtering, SIP over TLS, HTTPS encryption, user access log Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| SIP Features | SIP v1(RFC2543), SIP v2(RFC3261) Audio codecs: G.711a, G.711μ, G.722, G.729 Video codecs: H.264 MPEG-4/MJEG (E21V only) Speech Quality: 7kHz Audio Echo Cancellation Voice Activation Detection Comfort Noise Generator |
| Switches | 1 Call button, 1 reset button (on board) |
| Camera | 3M pixels |
| Resolution | up to 1080p |
| Microphone | 1 integrated microphone, IP67 |
| Speaker | 1W, IP66 |
| Control Input | 2 input relays for alarm/ (Voltage, Current) |
| Control Output | 2 output relays for door opener/ (Voltage, Current) |
| Indication | Status lamp (colors: red, green, blue) |
| Power Source | 12V DC |
| Power Consumption | less than 12W |
| IP Grade | IP65 |
| Installation | Flush-mounted, Fit in Clipsal 164/4 back box |
| Operating Temperature | -20 ° ~ 55 °C (-4 °F - 131° F) |
| Finish | Plate: Stainless steel |
| Dimension | 210 (H) x 120 (W )x 45.6 (D)mm (8.27" x 4.72" x 1.8") |
- Model: N-SP80VS1
-
