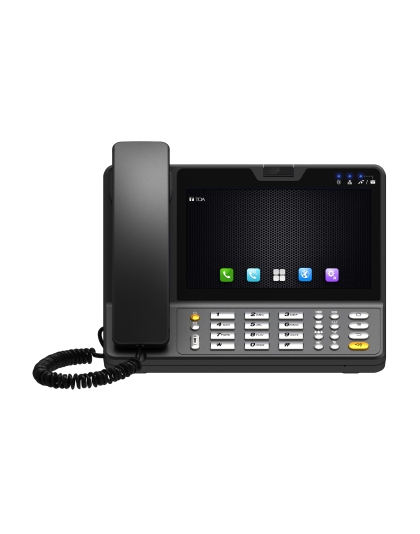

SIP Multimedia Intercom Station

The N-SP80 series SIP Video Intercom System offers flexible audio and video communications using standard SIP and Onvif protocols.
$1,209.00
Qty:
Add to Cart
Print Add to Compare

The N-SP80 series SIP Video Intercom System offers flexible audio and video communications using standard SIP and Onvif protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without a SIP server. TOA’s N-8000SG SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system. The N-SP80MS1 can communicate with master and door stations, and control door station contact closure outputs.

Phone FeaturesWeb support multi-language
Auto-answer
Volume control
Direct IP call without SIP proxy
Auto-Provision
DTMF modes: Inband, RFC2833, SIP INFO
Audio Features: VAD, CNG, AEC, G.165/G.168
Network Features2x10/100Mbps Ethernet Port
1xPoE(IEEE803.2af)
Security: Password Protection, IP address filtering, SIP over TLS,
HTTPS encryption, user access log
Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP,
TCP, UDP, ICMP, DHCP, ARP
IP assignment: Static IP, DHCP, PPPoE
SIP FeaturesSIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711μ, G.722, G.723, G.729a/b, iLBC,
AMR-NB/WB, OPUS
Video codecs: H.263, H.264
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
OthersAndroid 4.2
Management by LCD Menu Configuration, WebUI
Download content from the specified server
Information receiving, storing, and rendering capabilities
Web browser
Contacts and Call records management
Support playing local or online video
Graphic Display7 inch capacitive touch screen TFT LCD, 800x480 pixels , 16:9 wide
screen aspect ratio
Camera2M pixels C-MOS camera, free rotation
Resolutionup to 1080p
Video FeaturesQCIF, QVGA, CIF, 4CIF, VGA
Video bitrate: 64kbps~2Mbps
PIP
Full Screen
local video ON/OFF control
Hands-FreeMicrophone and Speaker built-in
Hand-setConnected with a carl-cord
External InterfaceIEEE802.11 b/g/n, USB 2.0, 3.5mm headset jack, HDMI
Power SourcePoE
Power Consumptionless than 12W
InstallationDesktop
Operating Temperature0 °C 40 °C (32 °F- 104 °F)
FinishABS
Dimension240 (H) x 213 (W) x 120( D)mm (9.44" x 8.39" x 4.72"
  • Model: N-SP80MS1
  • Manufacturer: TOA
