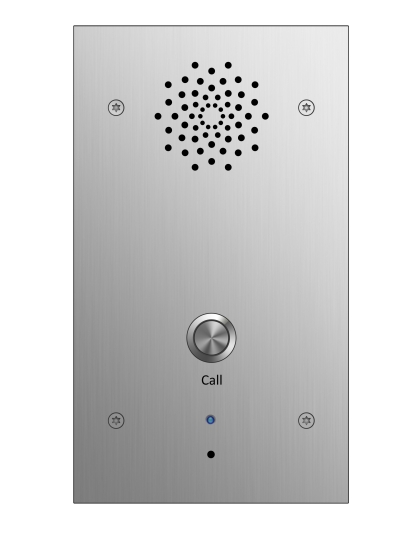

Outdoor/Indoor SIP Audio Door Station

The N-SP80AS1 SIP Audio Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch and two control relay outputs.
$899.00
Qty:
Add to Cart
Print Add to Compare

The N-SP80AS1 SIP Audio Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch and two control relay outputs.

The N-SP80 series SIP Video Intercom System offers flexible audio and video communications using standard SIP and Onvif protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without a SIP server. TOA’s N-8000SG SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system.

Phone FeaturesWeb support multi-language
Auto-answer
Volume control
Direct IP call without SIP proxy
Auto-Provision
Network Features2x10/100Mbps Ethernet Port
Security: Password Protection, IP address filtering, SIP over TLS, HTTPS
encryption,user access log, SRTP (Secure RTP)
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP,
UDP, ICMP, DHCP, ARP
SIP FeaturesSIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711μ, G.722, G.729
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Switches1 Call button, 1 reset button (on board)
Microphone1 integrated microphone, IP67
Speaker1W, IP66
Control Input2 input relays for alarm/ (Voltage, Current)
Control Output2 output relays for door opener/ (Voltage, Current)
IndicationStatus lamp (colours: red, green, blue)
Power Source12V DC
IP GradeIP65
InstallationFlush-mounted, Fit in Clipsal 164/4 back box
Operating Temperature-20 ° ~ 55 °C (-4 °F - 131° F)
FinishPlate: Stainless steel
Dimension210 (H) x1 20 (W) x 45.6 (D)mm (8.27" x 4.72" x 1.8")
  • Model: N-SP80AS1
  • Manufacturer: TOA
