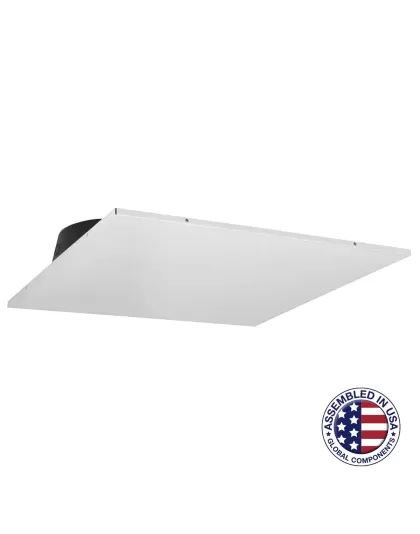

Quick-install speaker system for suspended tile ceilings features an 8-inch dual cone driver with dual voltage (25V/70V) transformer, 2x2 fine perforation grille with sub-plate and enclosure. For commercial paging and background music.
Includes
- Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
- Transformer: Dual voltage 25V/70V transfomer with taps at .25, .5, 1, 2, 5W
- Grille with Subplate (2×2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.
- Enclosure (8XD4): .147 cu.ft. steel with speaker leads that exit through a metal clamp for fast connection. Black.
- Mounting Aids: Restraint tabs.
A&E Specifications
The 2×2 ceiling tile speaker shall be Lowell Model No. LT2-810-72-BB. The 2’x2′ system shall directly replace a 2’x2′ ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch dual cone with a power rating of 15W. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. The system shall include a steel backbox (.147 cu.ft.) with leads exiting through a metal clamp. The dual voltage transformer (25V/70V) shall feature primary taps at .25, .5, 1, 2 and 5W.
