8" Coaxial Pendant Speaker with Transformer, Grille, Enclosure

The sleek design, quality performance and versatile mounting options make ESP speakers suitable for a wide variety of applications that require clear speech and full frequency music.
$400.00
Qty:
Add to Cart
Print Add to Compare

Description

Model ESP-82TB produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. The ESP speaker has a built-in bracket to mount with pipe or cable. It also features threaded insert points so you can switch to surface-mount by adding the optional U-bracket. The sleek design, quality performance and versatile mounting options make ESP speakers suitable for a wide variety of applications that require clear speech and full frequency music.

Features

  • Performance:  ESP Pendant Speakers are engineered to acoustically match the ES Series of Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered.
  • Quick Install:  The sleek tapered enclosure with press-fit grille has a magnetic-mount top that easily clicks into position, hiding the integral top bracket and wiring connections.

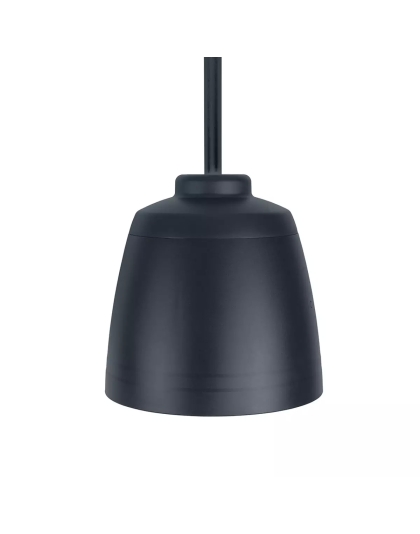

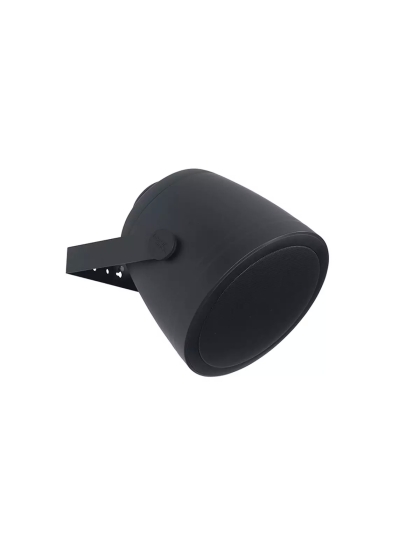

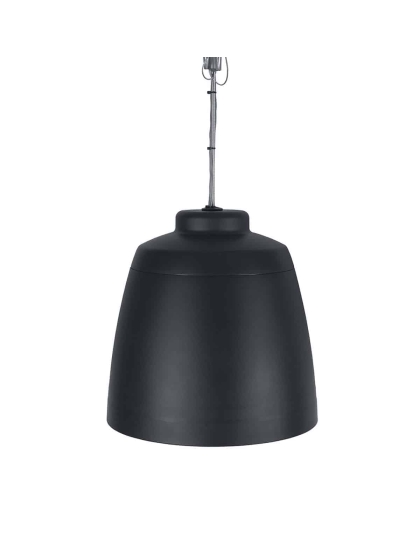

  • Extremely Versatile:  The speaker can be mounted with cable or pipe, but it’s also suitable for wall- or truss mount if the optional U-bracket is mounted to the threaded side insert points.

Includes

  • Driver:   8 in. 120W coaxial driver
  • Transformer:   120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems plus 4 ohm transformer bypass position.
  • Enclosure:  Tapered durable ABS plastic enclosure with matching magnetic-mount top to hide wiring connections and rigging bracket. The ported enclosure is tuned for extended bass response. Removable phoenix-style connector.

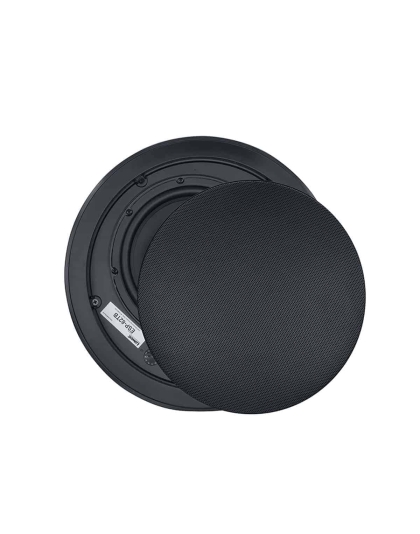

  • Grille:  Fine mesh 20-gauge CRS press-fit grille with UV-rated black powder coating includes scrim and pull-tool.

Compliance

  • UL 1480A General Signaling, US
  • CSA C22.2 No.205-12 General Signaling, Canada

A&E Specifications

The loudspeaker shall be Lowell ESP-82TB, which shall include a high-performance 8″ coaxial driver, ported bass reflex enclosure and press-fit grille for pendant or U-bracket mount. Frequency response shall be 64Hz-20kHz ±6dB. Sensitivity shall be 90.0dB log average @1W/1M over the frequency response range, measured in full-space. The speaker shall be constructed of a coated paper cone with rubber surround and a silk dome tweeter. The woofer magnet weight shall be a minimum of 19.2 oz. (544.7g) and the woofer voice coil diameter shall be 1.2″ (30.55mm). The transformer shall have primary taps for 100V (120, 60, 30, 15 watt); 70V (120, 60, 30, 15, 7.5 watt); and 25V (15, 7.5, 3.75, 1.88, 0.94 watt) with a selector switch mounted on the front under the grille that will include a 4ohm (UL minimum) transformer bypass position. The enclosure shall be black ABS plastic featuring a main body, magnetic cover, and bottom baffle where the driver shall be mounted. The enclosure shall feature a bracket assembly to accommodate cable or pipe hanging installations (cable/pipe not included). A four-conductor Phoenix style removable connector shall be located under the magnetic cover to allow input wiring and parallel output wiring to the next speaker. The unit shall include a fine mesh 20-gauge CRS press-fit grille with UV rated powder coating (black), scrim and pull tool.

  • Availability: In Stock
  • Model: ESP-82T
  • Manufacturer: Lowell Manufacturing
