Specifications
- Material: Steel
- Finish: White
- Diameter: 10.00 in., tapered
- Depth: 4.00 in.
- Volume: 0.147 cu.ft.
- Acoustical Treatment: Foam pad
- Mounting Aids: Knockouts (1 top, 4 side), clips
- For Grill Type: Screw-mount
A&E Specifications

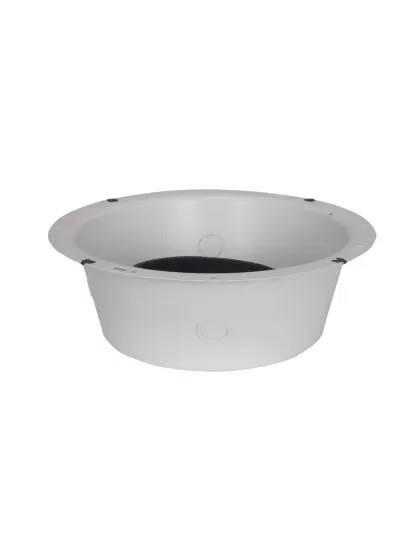

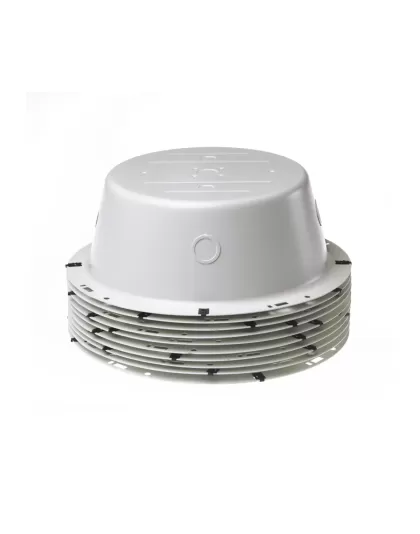

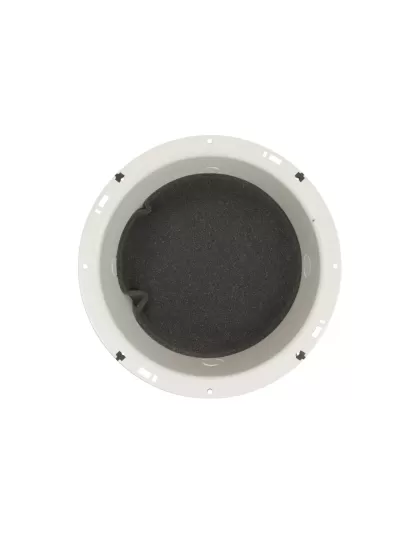

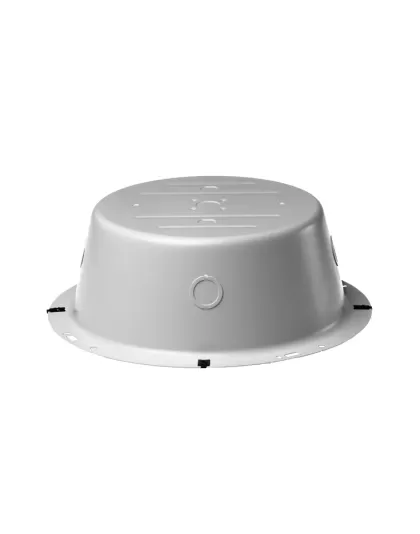

The enclosure for recessed installation of an 8" speaker shall be Lowell model 8XD4, which shall be fabricated of certified U.S. steel and have a white powder epoxy finish. It shall have a tapered 10" can diameter and 4" depth. It shall include a polyurethane foam disc. The enclosure shall feature one knockout (1/2") on top and four combination knockouts (1/2"–3/4") on sides spaced at 90-degree intervals.
