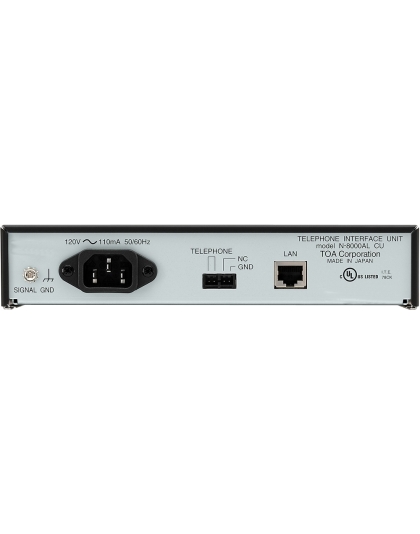

Telephone Interface Unit

$2,000.00
Qty:
Print Add to Compare

The N-8000AL is a Telephone interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has a single telephone line interface, allowing an analog telephone to be connected. Connecting the unit to the LAN permits the analog telephone to be operated in the same manner as the intercom master station. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket

Power Source 120 V AC, 50/60 Hz
Power Consumption 8 W (max.)
Telephone Interface Number of telephone line: 1 line
Selective signal type: DTMF signal
Monitoring function: Line Loop detection
Control function: Caller ID function
Wiring method: 1 pair of twisted pair cables
Short-circuit current: 120 mA
Open voltage: 24 V DC
Calling signal output voltage: Max. 80 V (0-p) AC (16 Hz)
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp,
Telephone status lamp
Other Firmware update function, System data hold function, Time of day hold facility,
Reset switch (front panel)
Setting Method Rack, Desk, Surface mount
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51")
Weight 1.7 kg (3.75 lb)
Accessory Power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1,
Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw for fitting plastic foot …4
Option Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AL unit)
MB-15B-J (for rack mounting two N-8000AL units)
Wall mounting bracket: YC-850
  • Model: N-8000AL
  • Manufacturer: TOA
