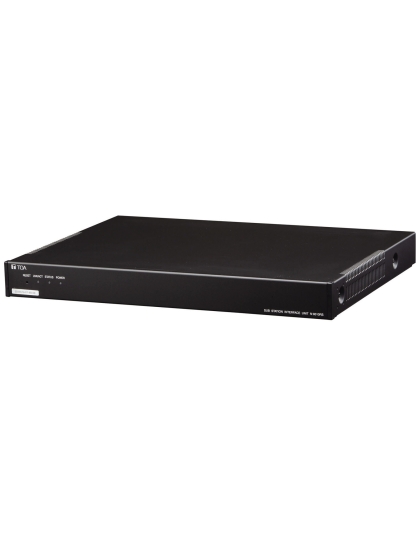

N-8010RS Sub Station Interface Unit

The N-8010RS Substation Interface Unit uses packet audio technology to permit connection of up to 16 RS-1xx series call switches or door stations.
$2,575.00
Qty:
Add to Cart
Print Add to Compare

The N-8010RS Substation Interface Unit uses packet audio technology to permit connection of up to 16 RS-1xx series call switches or door stations. Call switches and door stations use the same shielded twisted pair wiring. Each port provides 1W @25v to a door station, or 25V loudspeaker attached to a call switch. Each N-8010RS supports 1 voice link. The N-8000RS requires an IP master station, or connection to a 2-wire or 4-wire Exchange with at least one master station on the exchange.

Power Source 120 V AC, 50/60 Hz
Power Consumption 26 W (at rated), 32 W (max.)
Interface Section for Sub-station Number of lines: 16 lines
Number of speech link: 1 link
Transmission system: Analog baseband
Transmission range: 500 m (546.81 yd)/φ0.5 mm (AWG24), 800 m (874.89 yd)/
Speech method: Half-duplex conversation by way of voice switch

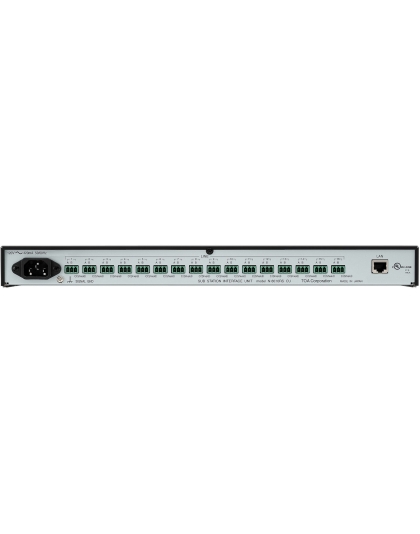

Connector: Removable terminal block (3 pins)
Wiring method: Two-core shielded cable
Audio output: Max. 1 W/line (conversation), Max. 0.5 W/line (paging)
Feeding voltage/current: 22 V DC, 30 mA max.
Control signal: Call in button detection, privacy button detection, hook detection
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: 0, *Reception only
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp
Other Firmware update function, System data hold function, Reset switch (front panel),
Forced air cooling
Setting Method Rack, Desk, Surface mount
Operating Temperature 0 ℃ to 40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 420 (W) × 44.3 (H) × 325.5 (D) mm (16.54" × 1.74" × 12.81")
Weight 3.8 kg (8.38 lb)
Accessory Power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1,
Removable terminal plug (3 pins) …16, Plastic foot …4, Screw for fitting plastic foot …4,
Rack mounting bracket …2, Screw for mounting bracket …8, Screw for rack mounting …4
Option Wall mounting bracket: YC-850
  • Model: N-8010RS
  • Manufacturer: TOA
