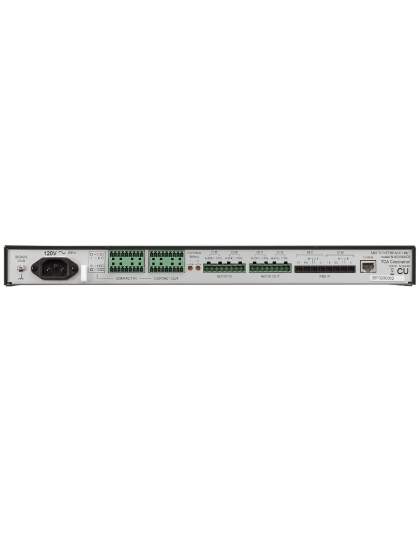

Multi-Interface (BGM, TEL, EXES, Control I/O)

The N-8000MI is a multisource interface for the N-8000 intercom system. When used as an analog audio bridge to the N-8000 intercom system, it accepts two line-level inputs which can be broadcast to any paging zone or station on the system. Two line-level outputs are provided, with sixteen contact closure inputs and sixteen relay outputs. Contact closures may be synchronized with a paging event, linked to contact closure inputs, be triggered by a station call, be triggered by IP control or a master station, or be triggered by a fault in the network or a 2-wire (N-8000EX/N-8010EX) line fault for 24/7 supervision. Rack mount and wall mount hardware included

table id="spectable"> Power Source 120 V AC, 50/60 Hz Power Consumption 16 W (250 mA) (at rated), 21 W (330 mA) (max.) Audio Input (*3) Input: 2 inputs (2 P/input), Max. 0 dB (*1), 600 Ω or less, balanced,
with a semi-fixed volume for adjustment (0 to -25 dB)
Control: 2 inputs (2 P/input), no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 10 mA
Removable terminal block (8 pins) Audio Output (*3) Output: 2 outputs (2 P/output), Max. 0 dB (*1), 600 Ω or less, balanced
Control: 2 outputs (2 P/output), relay contact output, contact capacity: 24 V DC/0.5 A
Removable terminal block (8 pins) Contact Input (*3) 16 inputs, no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 10 mA, removable terminal block (18 pins) Contact Output (*3) 16 outputs, relay contact output, contact capacity: 24 V DC/0.5 A,
removable terminal block (18 pins) PBX I/F (*3) PBX input and output: 2 channels, Max.: 0 dB (*2) or less, Average: -15 dB (*2) or less,
600 Ω, balanced, mini-clamp connector (2 pins),
with adjustment functions for both input and output
(Input: 0 to 15 dB, Output: -15 to 0 dB), Analog E & M interface Tie-line I/F (*3) Tie-line input and output: 2 channels, Max.: 0 dB (*2) or less, Average: -15 dB (*2) or less,
600 Ω, balanced, mini-clamp connector (2 pins)
Signal method: EXES-2000/EXES-6000 tie-line method
Selective signal: DTMF signal Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software) Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp Others Firmware update function, System registration data entry hold facility,
Time of day hold facility, Reset switch (front panel) Installation Method Rack, Desk, Surface mount Operating Temperature 0 ℃ to 40 ℃ Operating Humidity 90 %RH or less (no condensation) Finish Pre-coated steel plate, black, 30 % gloss Dimensions 420 (W) × 44.3 (H) × 239.5 (D) mm Weight 2.8 kg Accessory AC power cord (2 m) …1, CD (for PC setting, maintenance use) …1,
Mini-clamp plug (2 pins) …10, Removable terminal plug (8 pins) …2,
Removable terminal plug (9 pins) …4, Plastic foot …4, Screw for fitting plastic foot …4,
Rack mounting bracket …2, Screw for rack mounting …4, Wall mounting bracket …2,
Screw for mounting bracket …8, Screw for wall mounting …4

• Model: N-8000MI
