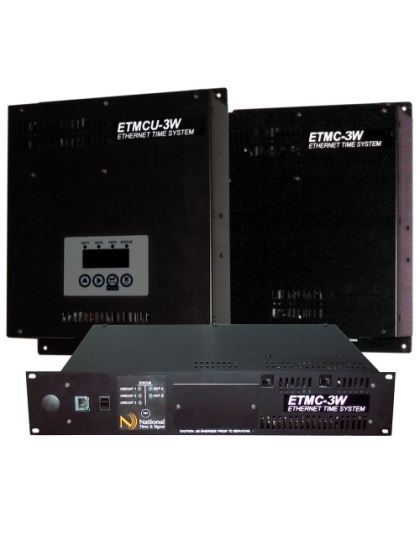

3-Wire Master Clock with Integrated Power Supply
LAN Master Clock; 75W 3-Wire Clock Circuit; 1-Relay OutputDescription
Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Available in easy to install wall mount and rack mount models with built-in power supplies.
Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCan™ browser based interface from any computer.
Features
- Ethernet Time Master Clock
- Consumes only one IP network address
- Powers and controls Ethernet time room clocks on two wires
- 2 Power/Data outputs for up to 80 clocks each
- User-friendly web browser interface
- Two relay outputs for scheduled events (bells, tones, etc.)

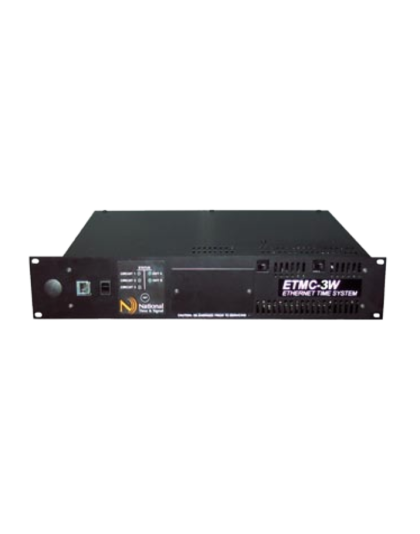

- 2U standard 19" rack mounting
- Small footprint 11"x13.5" wall mount
- Control output for Booster Power Supplies
- ETMCU-2W Wall Mount adds Time Display and user interface
- Made in the U.S.A.
Additional Specifications
Introducing National Time’s ET Series Master Clock – the future of accurate time display for Schools, Hospitals and Industry. The easiest to install and operate UL Listed master clock in the industry. Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCanTM browser based interface from any computer. ETMCU Series adds an LED time display and user interface to set the time without LAN connected.
- Model: ETMC-3W
-
