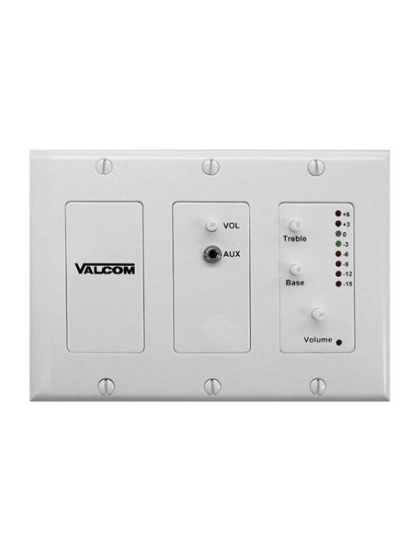

- Valcom 2 Channel White In-Wall Audio Mixer
- Provides active mixing for 1 balanced microphone input and 2 auxiliary inputs
- Additional audio input (building page) with an override feature
- Mounts in 4 gang deep electrical box and is supplied with a 4 gang white decorator style face plate
- Up to 3 additional remote modules (VC-V-9984) may be connected to the main control module
- Each remote module adds 1 balanced microphone and 1 auxiliary input
- Two pair structured cable is used to connect remote input modules to the main mixer
- Contemporary styling to match today's offices, conference rooms and restaurant environments
- Master volume control is provided for final level adjustments
- 8 segment LED meter provides instant visual indication of audio signal levels
- Building page input overrides all other sources (voice operated, switch enabled)
- Full frequency range output for speakers and modified output for horn loads
- Built in compressor (option switch controlled) evens out loud and quiet inputs
- Operates on 24 Vdc requiring 1 valcom power unit
- Provides active mixing for 1 balanced microphone input and 2 auxiliary inputs
- Additional audio input (building page) with an override feature
- Mounts in 4 gang deep electrical box and is supplied with a 4 gang white decorator style face plate
- Up to 3 additional remote modules (VC-V-9984) may be connected to the main control module
- Each remote module adds 1 balanced microphone and 1 auxiliary input
- Two pair structured cable is used to connect remote input modules to the main mixer
- Contemporary styling to match today's offices, conference rooms and restaurant environments
- Master volume control is provided for final level adjustments
- 8 segment LED meter provides instant visual indication of audio signal levels
- Building page input overrides all other sources (voice operated, switch enabled)
- Full frequency range output for speakers and modified output for horn loads
- Built in compressor (option switch controlled) evens out loud and quiet inputs
- Operates on 24 Vdc requiring 1 valcom power unit
- Model: V-9983-W
- SKU: VC-V-9983-W
-
