HDMI Extender Splitter Set - 1080p60 up to 120m Over CAT5/5e/6
Ocean Matrix
Ideal for projection screens, remote conferencing, CCTV, high-end security, and remote HD monitoring.
$511.00

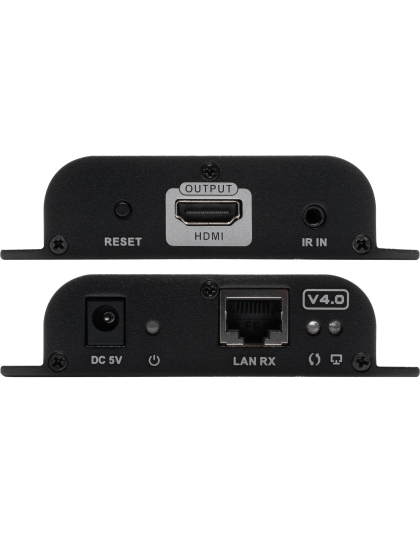

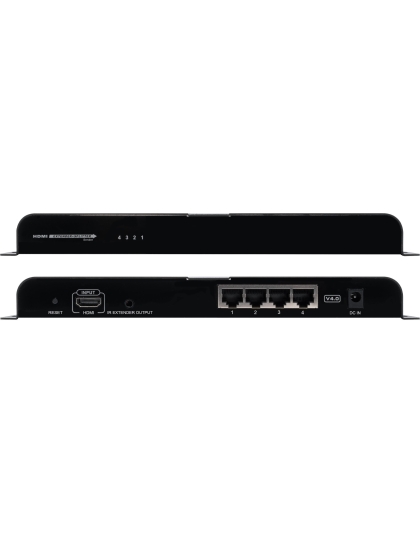

The Ocean Matrix OMX-HDMI-HDB1Xz splitter extender system over a single Cat5/Cat5e/Cat6 distributes 1 HDMI source to 8 HDMI displays simultaneously. This system extends high definition audio/video transmission beyond the standard distances for HDMI cable limitations via HDbitT technology. The OMX-HDMI-HDB1Xz delivers full 1080P HDMI signal up to 394 feet over a single Cat6 network cable. IR support allows for remote control of the source at a secondary location with IR extension cables (included).
Ideal for projection screens, remote conferencing, CCTV, high-end security, and remote HD monitoring.
Features:
- Splits a single HDMI input signal into 4 HDMI output signals identical to the input (or 8 for model with 8 receivers)
- Extends HDMI signals up to 80m (CAT5) 100m (CAT5e) and 120m (CAT6)
- Supports full HD resolutions up to 1080p@60Hz
- Plug and play
- Rugged metal mountable housing
- Lightning, surge, and ESD protected
Specifications:
- Inputs: 1 x HDMI
- Outputs: 4 x RJ45 (or 8 for model with 8 receivers)
- HDMI Version: HDMI1.3 Compatible with HDCP1.4
- Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
- Transmission Distance: 1080p 60Hz up to 120m with full HD over a single CAT6 cable
- IR Signal: Supports 20-60kHz IR device
- Operating Temperature: 32°F - 140°F (0°C - 60°C)
- Power Supply: TX: DC5V/2A RX: DC5V/1A
- Power Consumption: TX: < 10W RX: 3W
- Dimensions (LxWxH): TX: 9.94 x 3.88 x 1in RX: 3.81 x 3.71 x 0.94in
- Weight: TX: 1.3lbs RX: 0.31lbs
Item Includes:

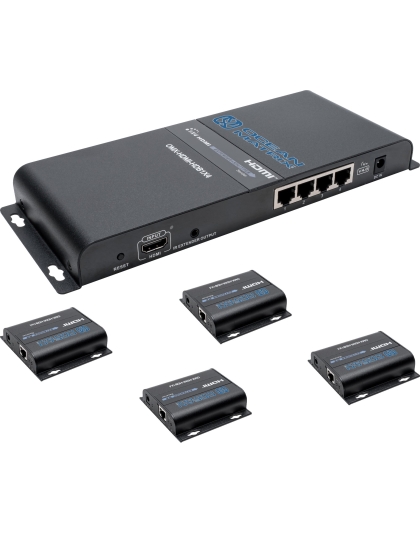

- 1 x OMX-HDMI-HDB1X4 Extender Set (1 x Extender 4 x Receivers) or 8 for model with 8 receivers

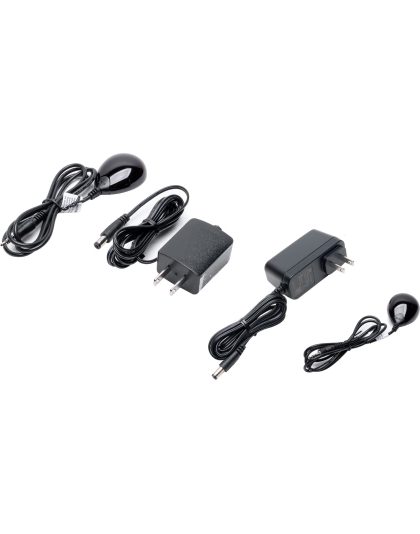

- 1 x DC5V/2A Adapter
- 4 x DC5V/1A Adapter or 8 for model with 8 receivers
- 1 x IR Blaster Extension Cable
- 4 x IR Receiver Extension Cable or 8 for model with 8 receivers
