Description

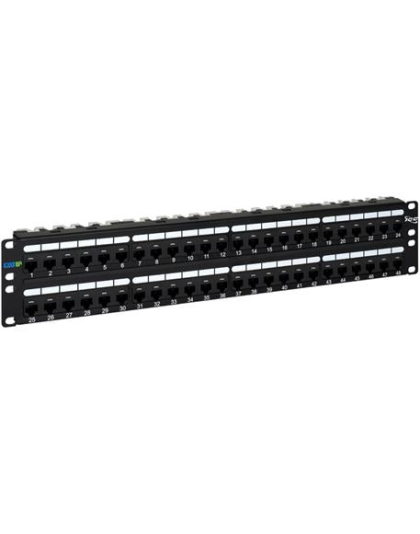

- CAT6A 48-Port 110-Type Patch Panel- Vertical 110-Type IDC connections reduces potential Alien Crosstalk (ANXT)
- Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating requirements

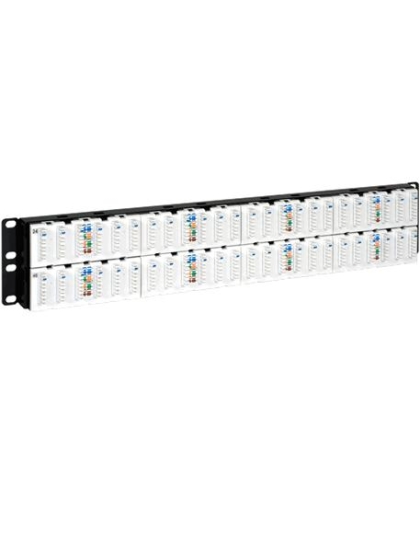

- 110-Type IDC termination helps reduce installation time and improve wire retention
- 50 micro inch gold plating on all modular contacts to protect from corrosion
- 2 rack mount spaces (RMS), Mounts on industry standard 19” wide racks or equipment
- T568A or T568B wiring schemes; not compatible with 110-type patch plug
- UL Listed
Features
- Front Port Connection: Cat6a
- Number of Ports: 48
- Patch Panels: Horizontal
- Rack Space: 2U
- Rear Port Connection: 110-Type
- Color: Black
- Country of Origin: China
- RoHS Compliant: Yes
- Type of Packaging: Brown Box
- Warranty: 3 years
- Website Link: http://www.icc.com/
Environmental Features
- Energy Star Qualified: No
- Availability: 15 In Stock
- Model: ICMPP0486B
- SKU: ICC-ICMPP0486B
-
