Description

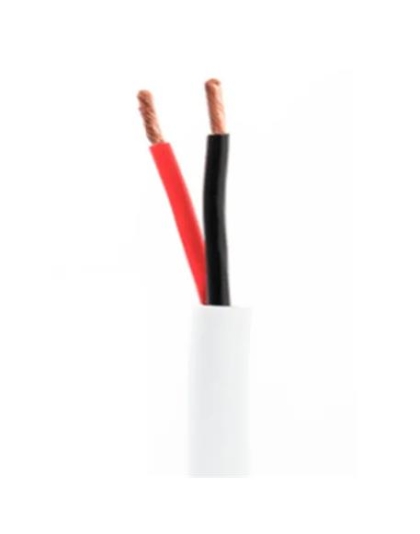

- 1000ft / Reelex II- AWG Size: 18
- Number of Conductor: 2
- Conductor Material: Stranded Bare Copper
- Conductor: 7 / 0.4 mm
- Composing: 7*0.400
- Diameter: 7*0.400 mm
- Insulation Material: PVC
- Average Thickness: 0.200 mm
- Min. Point Thickness: 0.170 mm
- Insulation Diameter: 1.75±0.01 mm
- Nominal Wall: 0.245 mm
- Assembly Dia.: 3.2 (±0.2mm)
- Cable Core: 2C
- Cable-Unit: Unit 1-2
- Min. Sheath Thickness: 0.35 mm
- Nom. Overall Diameter: 4.5±0.5 mm
- Jacket Material: FR-PVC
- Average Thickness: 0.38 mm
- Min. Point Thickness: 0.34 mm
- Outer Dia.: 3.96 (±0.2mm)
- Rip Cord: Yes
- Insulation colors: Black / Red
- Nominal Weight: 21 lbs.
Features
- Cable Rating: CMR/Riser
- Conductor: 18AWG
- Length - Feet: 1000
- Color: White
- Warranty: 1 Year
- Website Link: http://www.wavenet.net
Environmental Features
- Model: 1000-18-2-WH
- SKU: WAV-1000-18-2-WH
-
Manufacturer:
