Description

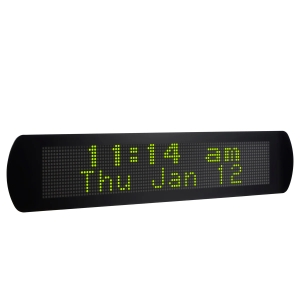

The OAX2-24VP LED display functions as an NTP synchronized clock and an emergency communications device. Using a pluggable 24V connector for power and an RJ45 Ethernet jack for data, the OAX2-24VP is ETL listed and adds a visual textual notification component to your safety alerting protocol. Contact us for more information on how the OAX2-24VP can augment your current emergency notification system.

Features

• Display power is supplied through a 24v pluggable connector
• Data Integration over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) PoE standard
• Low power consumption—11 watts
• No master clock or serial connection required
• Visible from over 150 feet (46 meters)
• Red, yellow and green LED display options
• Multiple 12- or 24-hour time display formats
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time
• Compatible with DHCP or static IP addressable
• 10/100BaseT Ethernet
• Easy to download firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked
• Monitoring system available
• Messaging generated from a secure web page
• Optional integration to mass notification providers via CAP or RSS feeds (Omnilert, RAVE, etc)

Description

Power-over-Ethernet low voltage LED display tested to NEMA 4x and IP66 standards for water and dust ingress protection. Stainless steel case, gasketed lens, watertight conduit connector. Displays synchronized time in multiple formats from an NTP time server. Messaging is generated from a secure web page or from integrations with leading emergency notification providers like Omnilert and other CAP and RSS compatible message feeds.

Made in the USA from US and imported components, 3 year warranty

Features

• Fully gasketed version for protection from dust and water ingress
• 304 stainless steel faceplate and case (type 316 available)
• Polycarbonate lens (PVC lens available for resistance to harsh chemicals)
• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) PoE standard
• Low power consumption—11 watts
• No master clock or serial connection required
• Visible from over 150 feet (46 meters) in single line mode and 90' in two line mode
• Red, yellow and green LED display options
• Multiple 12- or 24-hour time display formats
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time
• Compatible with DHCP or static IP addressable
• 10/100BaseT Ethernet
• Easy to download firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked
• Monitoring system available
• Messaging generated from a secure web page
• Optional integration to mass notification providers via CAP or RSS feeds (Omnilert, RAVE, etc)

Description

At 30" x 7" (91.5 cm W x 17.8 cm H), our largest PoE digital display can be read from 150' away in single line mode and 90' in two line mode. This NTP synchronized time and date display does not require a master clock or an AC outlet and offers different display color, time and date formats and message display options. Quickly send messages to the display from your own password-protected webpage on our support site, or connect it to leading mass notification providers - all included. Made in the USA by Novanex from US and imported components.

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) PoE standard
• Low power consumption—11 watts
• No master clock or serial connection required
• Visible from over 150 feet (46 meters) in single line mode, 90 feet in two line mode
• Red, yellow and green LED display options
• Multiple 12- or 24-hour time display formats
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time
• Compatible with DHCP or static IP addressable
• 10/100BaseT Ethernet
• Easy to download firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked
• Monitoring system available
• Messaging generated from a secure web page
• Optional integration to mass notification providers via CAP or RSS feeds (Omnilert, RAVE, etc)

Description

Fill the gaps in your emergency management system by adding a visual text messaging solution that doesn't need an AC outlet. Power-over-Ethernet technology gets power and data over one Ethernet cable to bring emergency messaging to those areas in your facility that don't get cell coverage, or in areas where high noise levels prevent audible alerting. An alert speaker and flashing strobe light call attention to the message display. When an active message is not displayed, the sign uses SNTP to connect to a time server to retrieve accurate time and date. Multiple time and date display options are available.

Our 16x96 pixel LED display will regularly access your emergency messaging provider account and display any active messages your organization has initiated. If your mass notification system uses Common Alerting Protocol (CAP) or Real Simple Syndication (RSS), Novanex OnAlert can securely integrate with your provider. Leading integration partners include Omnilert (e2Campus), RAVE Alerts and other major suppliers of emergency and mass notification systems.

Made in the USA from US and imported components, 5 year warranty

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) PoE standard
• Low power consumption—11 watts
• No master clock or serial connection required
• Visible from over 150 feet (46 meters) in single line mode, 90 feet in two line mode
• Red, yellow and green LED display options
• Multiple 12- or 24-hour time display formats to choose from
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time
• Compatible with DHCP or static IP addressable
• 10/100BaseT Ethernet
• Easy to download firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked
• Monitoring system available
• Messaging generated from a secure web page
• Optional integration to mass notification providers via CAP or RSS feeds (Omnilert, RAVE, etc)
• Flashing amber alert light and tone to draw attention to emergency messages

Power-over-Ethernet low voltage analog clock with one piece injection molded black ABS plastic case and clear polycarbonate lens. ETL certified, five year warranty. All components except the movement and hands are manufactured locally. Designed, assembled, tested and shipped from our facility in central Virginia.

Description

Power-over-Ethernet low voltage digital clock with green seven segment LEDs and 316 stainless steel case. Designed for use in clean rooms, food processing and other environments requiring frequent cleaning. Clock will install into a 2.5" or greater wall cavity. Fully gasketed and tested to IP65 dust and water ingress standards. ETL certified to new UL 62638-1:2019 Ed3 and CSA C22.2#62638-1:2019 Ed.3. Three year warranty.

Designed, assembled, tested and shipped from our facility in central Virginia.

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) Power over Ethernet standard
• Low power consumption—8 watts (4 digit), 9.5 watts (6 digit)
• No master clock or serial connection required
• Visible from over 150 feet (46 meters)
• 6-digit models include 4 inch (10.2 cm) hour and minute numerals; and 3 inch (7.6 cm) second numerals; numerals are seven-segment, red or green LED
• 12-or 24-hour time display options
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time Compatible with DHCP or static IP addressable 10/100BaseT Ethernet Notification when clocks disconnected or not synchronized (monitoring system required)
• Easy to upload firmware upgrades
• Service light status indicator
• Monitoring system available

The Novanex ONTMS Clock Monitoring System, cloud version, gives a live view of the health of your installed Novanex clocks. The screen displays host names, MAC addresses, online/offline/last seen status, firmware release version and an editable note field. ONTMS can send an email notification when any clock is offline. Annual charge is displayed when selecting the number of monitored clocks.

This mounting bracket will allow two of our 6 digit clocks to mount back-to-back and be suspended from the ceiling. Requires two powered Ethernet cables. Does NOT include the required 3/4" conduit or pole and two locknuts to attach to our bracket, and does NOT include the pole mounting bracket to the truss or ceiling joist (due to the many height and structure differences in building construction).

Description

Power-over-Ethernet low voltage digital clock with red seven segment LEDs and ABS injection-molded plastic case. ETL certified, five year warranty. Designed, assembled, tested and shipped from our facility in central Virginia.

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) Power over Ethernet standard
• Low power consumption—8 watts
• No master clock or serial connection required
• Visible from over 150 feet (46 meters)
• 4-digit models include 4 inch (10.2 cm) seven-segment, red or green LED numerals
• 12-or 24-hour time display options
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time Compatible with DHCP or static IP addressable 10/100BaseT Ethernet Notification when clocks disconnected or not synchronized (monitoring system required)
• Easy to upload firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked, RoHS compliant
• Monitoring system available

Description

Power-over-Ethernet low voltage digital clock with red seven segment LEDs and powder coated black aluminum case. ETL certified, five year warranty. Designed, assembled, tested and shipped from our facility in central Virginia.

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) Power over Ethernet standard
• Low power consumption—8 watts (4 digit), 9.5 watts (6 digit)
• No master clock or serial connection required
• Visible from over 150 feet (46 meters)
• 4-digit models include 4 inch (10.2 cm) seven-segment, red or green LED numerals
• 6-digit models include 4 inch (10.2 cm) hour and minute numerals; and 3 inch (7.6 cm) second numerals; numerals are seven-segment, red or green LED
• 12-or 24-hour time display options
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time Compatible with DHCP or static IP addressable 10/100BaseT Ethernet Notification when clocks disconnected or not synchronized (monitoring system required)
• Easy to upload firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked, RoHS compliant
• Monitoring system available

Mounting Options

• Surface mount, using keyholes in rear of clock case (standard)

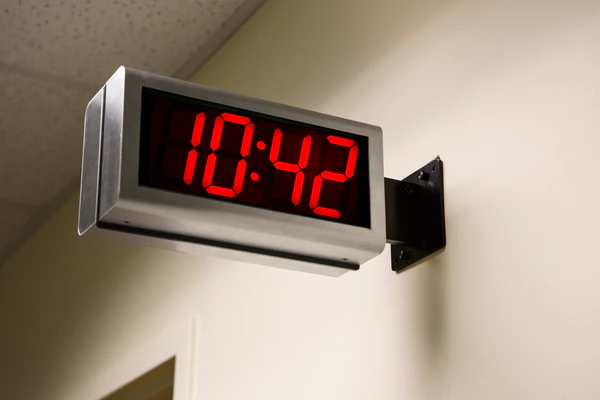

• Cantilever mount, 2 clocks and steel bracket supplied (xxxxDS models)
• Recessed mount, clock and wall faceplate supplied (xxxxFM models)
• Ceiling mount, bracket ordered seperately for use with customer conduit or pole  (xxxxKIT)

Description

Power-over-Ethernet low voltage digital clock with red seven segment LEDs and powder coated black aluminum case. ETL certified, five year warranty. Designed, assembled, tested and shipped from our facility in central Virginia.

Features

• Power supplied over standard Cat-5 or Cat-6 cabling using the IEEE 802.3af (POE compatible) Power over Ethernet standard
• Low power consumption—8 watts (4 digit), 9.5 watts (6 digit)
• No master clock or serial connection required
• Visible from over 150 feet (46 meters)
• 4-digit models include 4 inch (10.2 cm) seven-segment, red or green LED numerals
• 6-digit models include 4 inch (10.2 cm) hour and minute numerals; and 3 inch (7.6 cm) second numerals; numerals are seven-segment, red or green LED
• 12-or 24-hour time display options
• Accuracy within 200 milliseconds
• Time set automatically by Simple Network Time Protocol (SNTP)
• Automatic adjustment for Daylight Saving Time Compatible with DHCP or static IP addressable 10/100BaseT Ethernet Notification when clocks disconnected or not synchronized (monitoring system required)
• Easy to upload firmware upgrades
• Service light status indicator
• ANSI/UL 60950-1, CAN/C22.2, ETL Listed, CE Marked, RoHS compliant
• Monitoring system available

Mounting Options

• Surface mount, using keyholes in rear of clock case (standard)
• Cantilever mount, 2 clocks and steel bracket supplied (xxxxDS models)
• Recessed mount, clock and wall faceplate supplied (xxxxFM models)
• Ceiling mount, bracket ordered seperately for use with customer conduit or pole  (xxxxKIT)

This mounting bracket will allow four of our 6 digit clocks to mount side-by-side and be suspended from the ceiling for 360 degree visibility. Requires four powered Ethernet cables. Does NOT include the required 3/4" conduit or pole and two locknuts to attach to our bracket, and does NOT include the pole mounting bracket to the truss or ceiling joist (due to the many height and structure differences in building construction).

Clocks not included with this product. Product shown with 2 ONT6 and 2 ONT6SS mounted onto ONT6QUAD

This black powder coated steel bracket allows mounting two six digit Novanex clocks back to back in a cantilever fashion, perpendicular from the wall surface. You may also mount a single clock in this way, just be aware the rear of the clock will be visible from the other side (labels, wiring, etc.)

This black powder coated steel bracket allows mounting two four digit Novanex clocks back to back in a cantilever fashion, perpendicular from the wall surface. You may also mount a single clock in this way, just be aware the rear of the clock will be visible from the other side (labels, wiring, etc.)

This 60W 56V Gigabit PoE Injector (Power over Ethernet) is a single port IEEE 802.3 AF/AT/BT(type 3) compliant midspan solution that is a compact and easy to install with RJ-45 Ethernet cabling. This elegant unit is ideal for installing any Novanex clock or OAX2 messaging sign. It eliminates the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over your wiring or existing Ethernet infrastructure.

The Gigabit PoE Injector is very lightweight and compact. It is an 802.3 AF/AT/BT compliant device, and uses all 4 pairs in a category rated wiring bundle, i.e. CAT5e (or better) run required for Gigabit Ethernet. It supports both 2-pair and 4-pair PoE outputs, and is ideal for installing Novanex IP PoE devices.

PoE voltage drops over distance. As a rule of thumb you can lose up to 6V per every 100′- 200′ of wiring, depending on the gauge. Lower power also means more amperage means more heat and perhaps issues with the 24 gauge wires in CAT5. You may need to use 18 gauge wiring for best distance results.

NEMA 4X / IP66 rated watertight, dust proof and corrosion resistant enclosure for Novanex 4 digit clocks. Enclosure only, purchase a 4 digit clock model separately. Comes with a watertight conduit connector, four mounting lugs and a custom stainless steel bracket to attach our clocks to the inside of the enclosure. Shown with an off white four digit green LED clock (not included). Contact us about versions suitable for environments that have explosion potential.

The ONT4KIT facilitates mounting any two 4 digit clocks from the ceiling. This mount will accept a customer provided 3/4" threaded conduit or suspension pole and ceiling joist bracket.

The ONT4KIT is also suitable for cantilever mounting two ONT4XX-P models (ABS plastic cases), but is NOT suitable for mounting two ONT4XX or ONT4SS models due to the combined weight of the metal cases (in this case use ONT4KIT-W).

NEMA 4X waterproof, dust proof and corrosion resistant enclosure for Novanex 6digit clocks. Enclosure only, purchase 6 digit clock separately. Includes watertight conduit connector, mounting lugs and a custom stainless steel bracket to attach our digital clock to the enclosure.
